Product Description

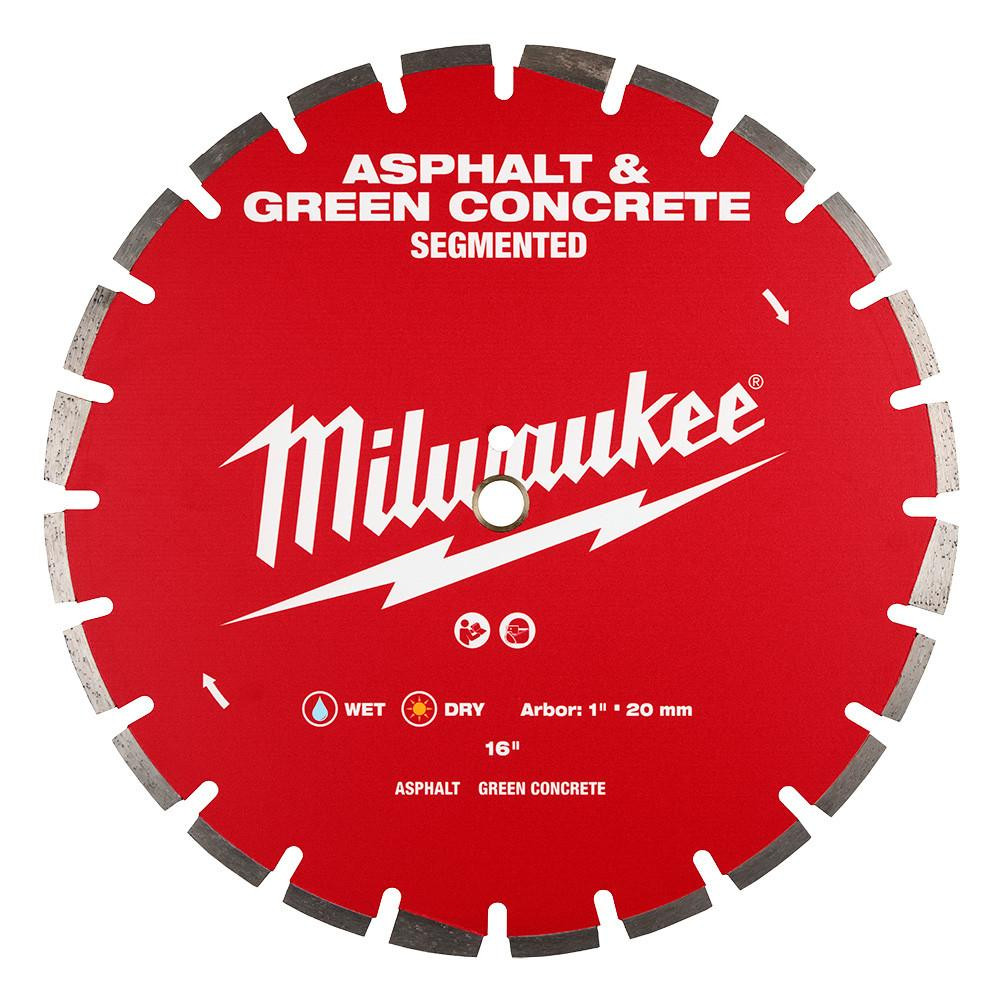

Milwaukee 16 in. Asphalt and Green Concrete Segmented Diamond Blade
Model Number: 49-93-7245
The Milwaukee 49-93-7245 16 in. Asphalt and Green Concrete Segmented Diamond Blade is a professional-grade diamond cutting blade engineered for full-depth cuts in asphalt, green concrete, and cured concrete on roadwork, utility cuts, sidewalk and driveway replacement, parking lot maintenance, expansion joint cutting, and any masonry application where the operator needs aggressive cutting speed combined with the longevity to make it through a high-production cutting day. The 16 in. blade size matches the cutting capacity of cut-off saws, brick saws, walk-behind masonry saws, and self-propelled masonry saws used across the construction and concrete trades, fitting directly onto the spindle of any saw that accepts a 16 in. blade with a 1 in. or 20 mm arbor.
The defining engineering feature on this blade is the laser-welded drop segment design. Conventional diamond blades wear from the side as well as the top during cuts in abrasive materials, and once the segments wear narrower than the steel core, the blade begins binding in its own kerf, slowing the cut and burning out the diamond matrix. The drop segments on the 49-93-7245 sit slightly proud of the core on both sides, sacrificing themselves first and protecting the core from undercut wear, which is the primary failure mode for diamond blades cutting asphalt and green concrete. The result is up to 3 times the cutting life of a comparable conventional diamond blade in concrete applications, while still delivering full cutting depth across the blade's service life. Wide gullets between the segments quickly evacuate slurry, abrasive dust, and material debris from the cut, which keeps fresh diamond exposed at the cutting edge and prevents the glazing and loading that slows down lesser blades.
The blade is rated for both wet and dry cutting, giving the operator the flexibility to use water-fed saws for cleaner cuts and reduced dust on green concrete applications, or to run dry on asphalt cuts where water introduction is undesirable. Maximum operating speed is 5,460 RPM, which covers the speed range of all common gas, electric, and cordless cut-off saws and walk-behind masonry saws. Always operate the blade within the saw manufacturer's specified RPM limits, use the correct guard configuration for the saw and application, and follow proper safety protocols for asphalt and concrete cutting including PPE for silica dust exposure. For best blade life, allow the blade to do the cutting without forcing the saw forward, dress the blade if it begins to glaze on hard cured concrete, and use water cooling when the application allows.
Features
- 16 in. diameter segmented diamond blade designed for asphalt, green concrete, and cured concrete
- Laser-welded drop segments provide undercut protection in abrasive applications
- Up to 3X longer cutting life in concrete compared to conventional diamond blades
- Wide gullets between segments quickly remove slurry and debris from the cut
- Unique Milwaukee diamond matrix engineered for asphalt longevity
- Laser-welded segment attachment for increased durability in tough materials
- Rated for both wet and dry cutting applications
- 1 in. / 20 mm dual-size arbor fits standard masonry saw spindles
- Maximum operating speed of 5,460 RPM covers gas, electric, and cordless cut-off saws
- Compatible with cut-off saws, brick saws, walk-behind masonry saws, and self-propelled masonry saws
- Built for full-depth asphalt cuts on roadwork, utility work, and concrete construction
- Distinctive Milwaukee red finish for jobsite visibility
Specifications
- Manufacturer: Milwaukee Tool
- Catalog Number: 49-93-7245
- Blade Diameter: 16 in.
- Arbor Hole: 1 in. / 20 mm (dual-size)
- Blade Thickness: 1/8 in.
- Maximum RPM: 5,460
- Blade Material: Diamond matrix with steel core
- Segment Type: Laser-welded drop segments
- Application: Asphalt, Green Concrete, Cured Concrete
- Cooling Method: Wet or Dry
- Compatible Saws: Cut-off saws, brick saws, walk-behind masonry saws, self-propelled masonry saws
- Color: Red
Includes
- (1) Milwaukee 49-93-7245 16 in. Asphalt and Green Concrete Segmented Diamond Blade
- Note: For 14 in. cutting applications, refer to the Milwaukee 49-93-7240 14 in. variant of this same blade family
- Note: Verify your saw's maximum RPM rating does not exceed the blade's 5,460 RPM limit before use
