Product Description

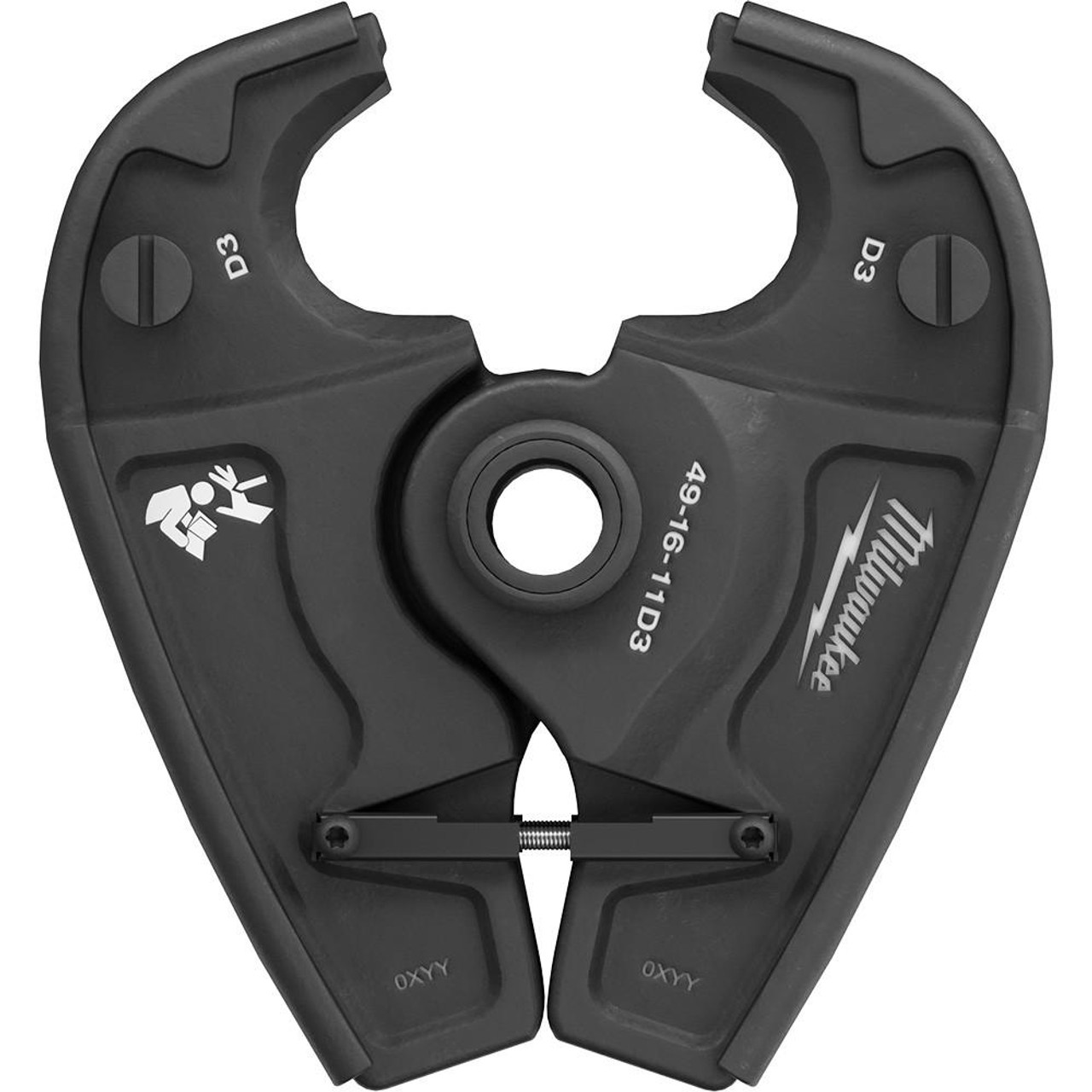

Milwaukee M18 FORCE LOGIC 6-Ton Snub Nose Crimping Jaw
Model Number: 49-16-11D3
The Milwaukee 49-16-11D3 is a 6-Ton Snub Nose Crimping Jaw for the Milwaukee M18 FORCE LOGIC hydraulic crimping tool — a short-nose jaw configuration designed for making compression crimps in confined spaces and tight mechanical access positions where the standard jaw length contacts surrounding conduit, wiring, or structural components before reaching the connector. The snub nose geometry shortens the jaw's working length forward of the tool body, allowing the crimping action to reach connectors in panel interiors, at the back of electrical boxes, within equipment wiring compartments, and in the confined spaces that the standard jaw configuration cannot access without repositioning the surrounding wiring or adjacent components. The 6-ton force rating matches the M18 FORCE LOGIC tool's hydraulic output for consistent, controlled crimp force at the snub nose jaw's connector engagement position.
Milwaukee designs the snub nose jaw as an interchangeable accessory in the M18 FORCE LOGIC system — swapping between the snub nose and standard jaw configurations allows the same crimping tool to address both open-access and confined-space crimping situations on the same project without carrying separate tools for each access condition. Always verify the connector manufacturer's die and jaw specification for compliant crimps, and confirm conductor and connector compatibility before making terminations in utility and commercial electrical systems.
Features
- Snub nose geometry for crimping in confined panels, boxes, and wiring compartments
- Short jaw reaches connectors where standard jaw contacts surrounding components
- Interchangeable with standard jaw for open-access and confined-access on same tool
- 6-ton force matched to M18 FORCE LOGIC output for consistent crimp performance
- Verify connector manufacturer specification before terminating utility connections
Specifications
- Type: Snub Nose Crimping Jaw
- Force Rating: 6 Ton
- Compatible Tool: Milwaukee M18 FORCE LOGIC Hydraulic Crimper
- Application: Confined-Space Compression Connector Crimping in Panels and Enclosures
Includes
- (1) Milwaukee 49-16-11D3 6-Ton Snub Nose Crimping Jaw
