Milwaukee Forward/Reverse Shuttle Kit
Model Number: 45-24-2560

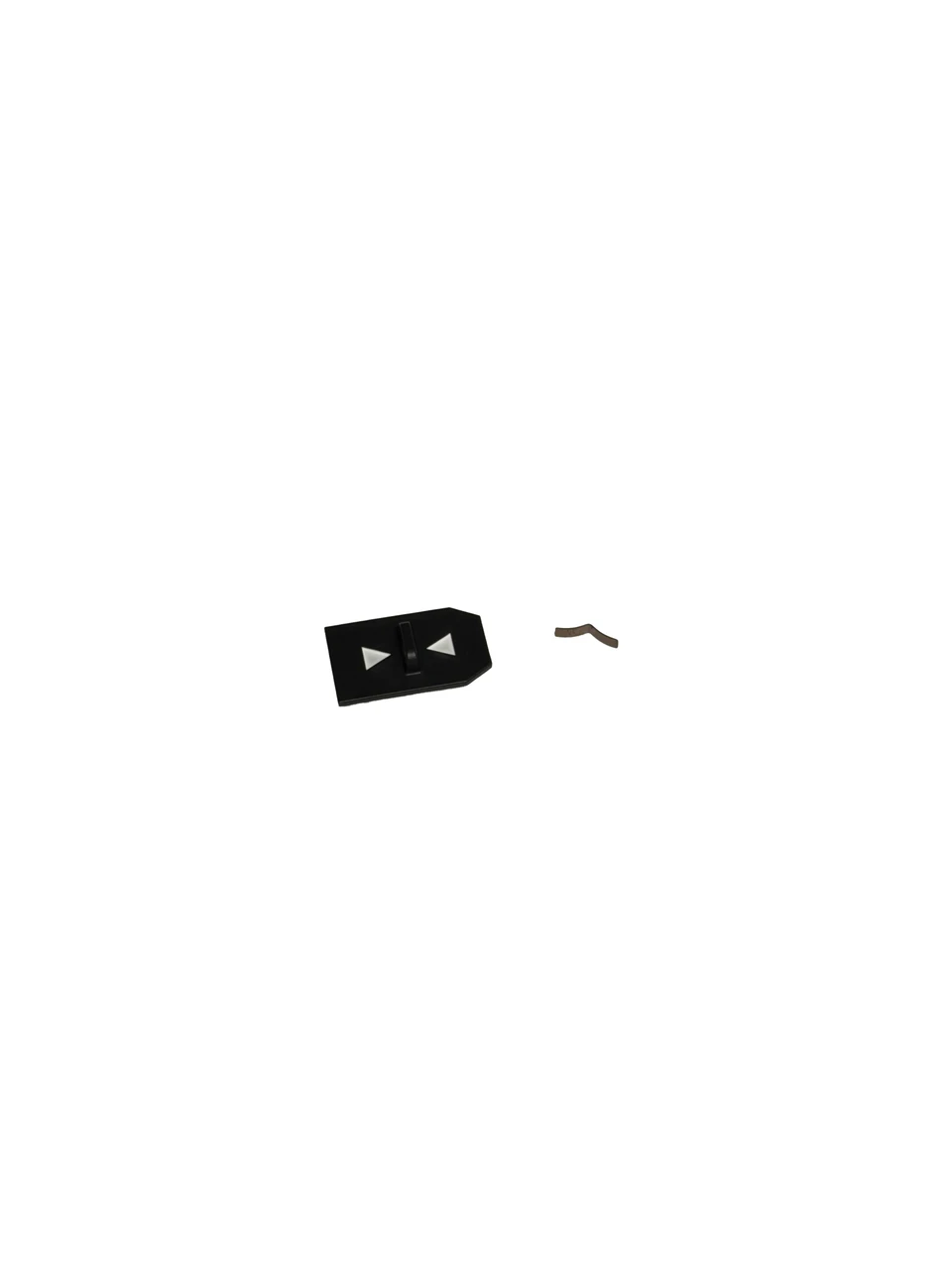

The Milwaukee 45-24-2560 is a genuine OEM Forward/Reverse Shuttle Kit for the 2868-20 and 2869-20 M18 FUEL ONE-KEY 1 in. Impact Wrenches. The forward/reverse shuttle is the sliding selector the operator pushes from one side of the tool to the other to choose forward (tightening) or reverse (loosening) rotation before pulling the trigger, with a center lock-out position. On these ONE-KEY impact wrenches the shuttle carries magnets that the tool's sensor board reads to detect the selected direction, and the kit's spring plate provides the detent action that holds each position and gives the positive click the operator feels. A worn, cracked, sticking, or seized shuttle, or a weak spring plate, keeps the operator from changing direction reliably, can let the tool change direction unexpectedly under impact, or locks it into one direction. Replacing both parts with the genuine Milwaukee OEM kit restores correct directional selection and reliable detent action, where off-spec parts may not seat, hold position, or read correctly at the sensor.
This shuttle kit is identified as the Forward/Reverse Shuttle Kit, Figure 85, on the Milwaukee service parts list for the 2868-20 M18 FUEL ONE-KEY 1 in. Standard Impact Wrench, serial L11A, bulletin 54-26-2970, and it also serves the 2869-20 extended-anvil version of this impact wrench. As a kit it includes the forward/reverse shuttle, with its magnets, and the spring plate (40-50-0027), the two parts that together make up the directional selector and its detent, so the shuttle and its spring are replaced as a matched set. It works with the tool's sensor board and switch; the 2868-20 and 2869-20 share this platform and differ mainly in their anvil, so verify by serial number which shuttle kit your tool takes. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM forward/reverse shuttle kit
- For the 2868-20 and 2869-20 M18 FUEL ONE-KEY 1 in. Impact Wrenches
- The sliding selector that sets forward or reverse rotation
- Center position is the lock-out that prevents accidental starts
- Shuttle carries magnets read by the tool's sensor board for direction
- Includes the shuttle (with magnets) and its spring plate (40-50-0027)
- The spring plate provides the detent action and positive click
- Figure 85 on the service parts diagram (bulletin 54-26-2970, SER L11A)
- Restores correct directional selection and reliable detent action
- Replace if the shuttle sticks, seizes, or will not hold a direction
- The 2868-20 and 2869-20 share this platform; verify by serial number
- Sold as a kit
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 45-24-2560
- Official Description: Forward/Reverse Shuttle Kit
- Component Type: Impact wrench direction-selector shuttle kit (shuttle and spring plate)
- Primary Fitment: Milwaukee 2868-20 and 2869-20 M18 FUEL ONE-KEY 1 in. Impact Wrenches, SER L11A
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 85 (bulletin 54-26-2970)
- Quantity: Sold individually (1 kit)
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Forward/Reverse Shuttle (with magnets)
- (1) Spring Plate (40-50-0027)
The sensor board (14-20-4005), the mode selector (45-24-2565), and the tool are NOT included and are sold separately. Verify by serial number which shuttle kit your 1 in. impact wrench takes, using Milwaukee's online parts lookup.
