Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

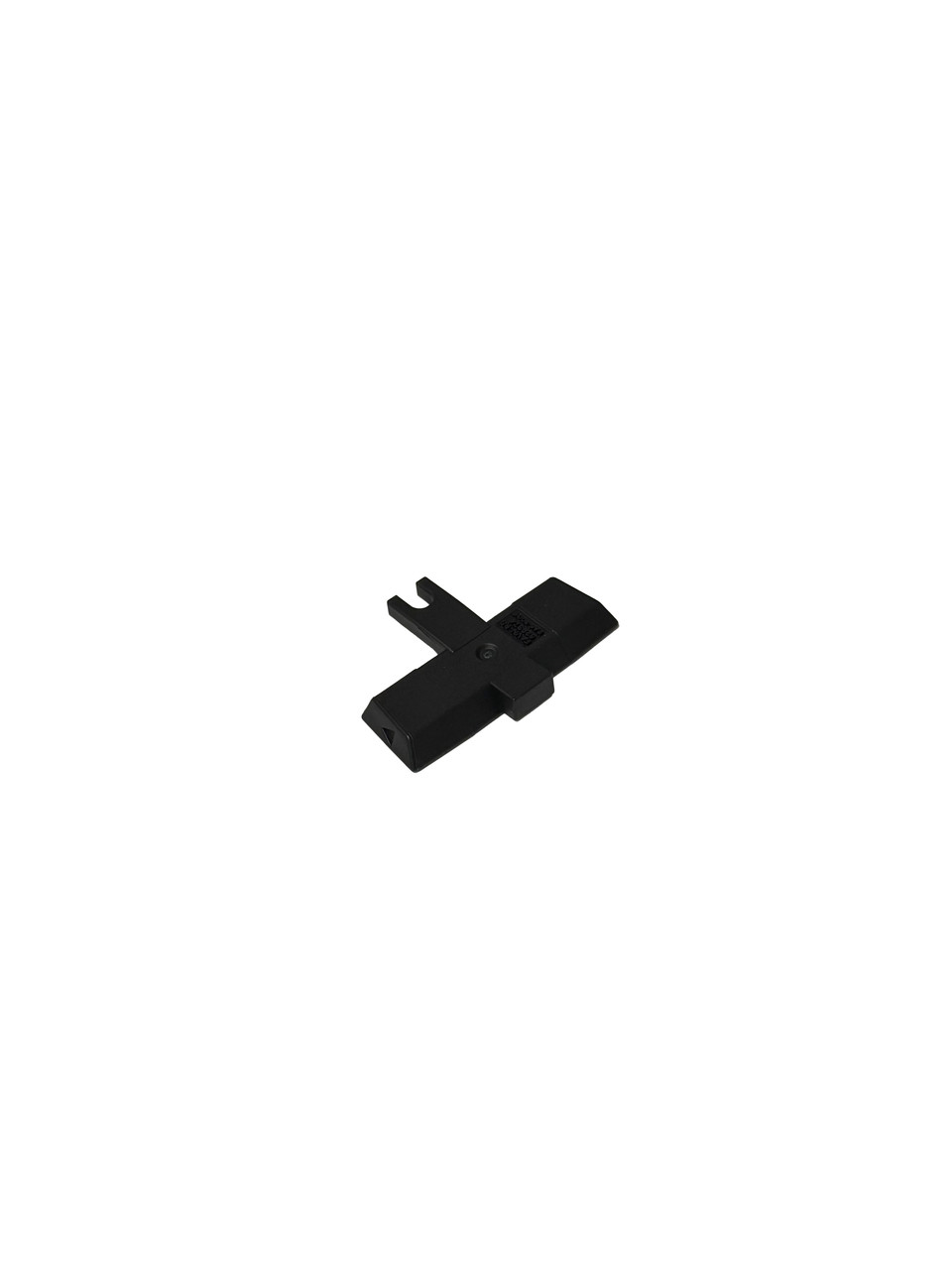

Milwaukee Forward/Reverse Shuttle
Model Number: 45-24-0022
The Milwaukee 45-24-0022 Forward/Reverse Shuttle is a genuine OEM replacement part designed for the Milwaukee 2767-20 (serial code H96A) M18 FUEL 1/2 in. High Torque Impact Wrench with Friction Ring, Milwaukee's professional-grade cordless 1/2 in. impact wrench used by mechanics, automotive technicians, fleet service professionals, industrial maintenance crews, and any tradesperson who needs serious cordless torque output in a tool that fits where pneumatic impact wrenches cannot. The forward/reverse shuttle (sometimes called the F/R shuttle) is the sliding selector mechanism the operator pushes from one side of the tool to the other to select either forward (tightening) or reverse (loosening) rotation before pulling the trigger. The shuttle physically reroutes the electrical contacts inside the tool switch to reverse motor polarity and rotation direction, and it provides the tactile detent action that confirms the operator has selected the correct direction before applying impact torque.
A worn, cracked, broken, sticking, or seized forward/reverse shuttle prevents the operator from changing rotation direction reliably, causes the tool to switch direction unexpectedly under impact, or locks the tool into a single direction. These symptoms make the impact wrench unsafe and unreliable, particularly in automotive and fleet service work where the operator must repeatedly switch between tightening and loosening fasteners. Replacing the shuttle with this OEM service part restores correct directional selection and reliable detent action. The 45-24-0022 typically works alongside the Milwaukee 45-24-0450 Speed Switch Assembly on the same 2767-20 platform, so when one is wearing out the other is often nearby in service life. Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee 2767-20 service parts diagram before ordering, since Milwaukee uses several different forward/reverse shuttle part numbers across their impact wrench lineup (including 45-24-0130, 45-24-0570, 45-24-1021, and 45-24-2657) and the 45-24-0022 is specific to the 2767-20 H96A platform. Verify by serial number using Milwaukee's online parts lookup before ordering to confirm correct fitment.
Features
- Genuine Milwaukee OEM replacement, direct factory part for the 45-24-0022 reference
- Designed for the Milwaukee 2767-20 (H96A) M18 FUEL 1/2 in. High Torque Impact Wrench with Friction Ring
- Sliding selector mechanism for forward and reverse rotation
- Physically reroutes switch contacts to reverse motor polarity and rotation direction
- Provides tactile detent action confirming direction selection before triggering
- Critical control for safe and reliable impact wrench operation
- Works alongside the Milwaukee 45-24-0450 Speed Switch Assembly on the same 2767-20 platform
- Manufactured to Milwaukee factory tolerances and material specifications
- Direct-fit replacement, no modification required for installation
- Restores correct directional selection after wear, cracking, breakage, sticking, or seizure
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 45-24-0022
- Official Description: Forward/Reverse Shuttle (F/R Shuttle)
- Component Type: Impact Wrench Directional Selector Slider
- Primary Fitment: Milwaukee 2767-20 (H96A) M18 FUEL 1/2 in. High Torque Impact Wrench with Friction Ring
- Companion Service Part: Milwaukee 45-24-0450 Speed Switch Assembly (same 2767-20 platform, sold separately)
- Quantity: Sold individually, 1 shuttle per order
- Part Type: OEM Service Replacement Part
Includes
- (1) Milwaukee 45-24-0022 Forward/Reverse Shuttle
- Note: Milwaukee uses several different forward/reverse shuttle part numbers across their impact wrench lineup. This part (45-24-0022) is NOT interchangeable with the 45-24-0130, 45-24-0570, 45-24-1021, or 45-24-2657 shuttles, which serve different Milwaukee impact wrench platforms
- Note: Verify your tool's catalog number (2767-20) and serial number against the official Milwaukee parts diagram before ordering
