Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

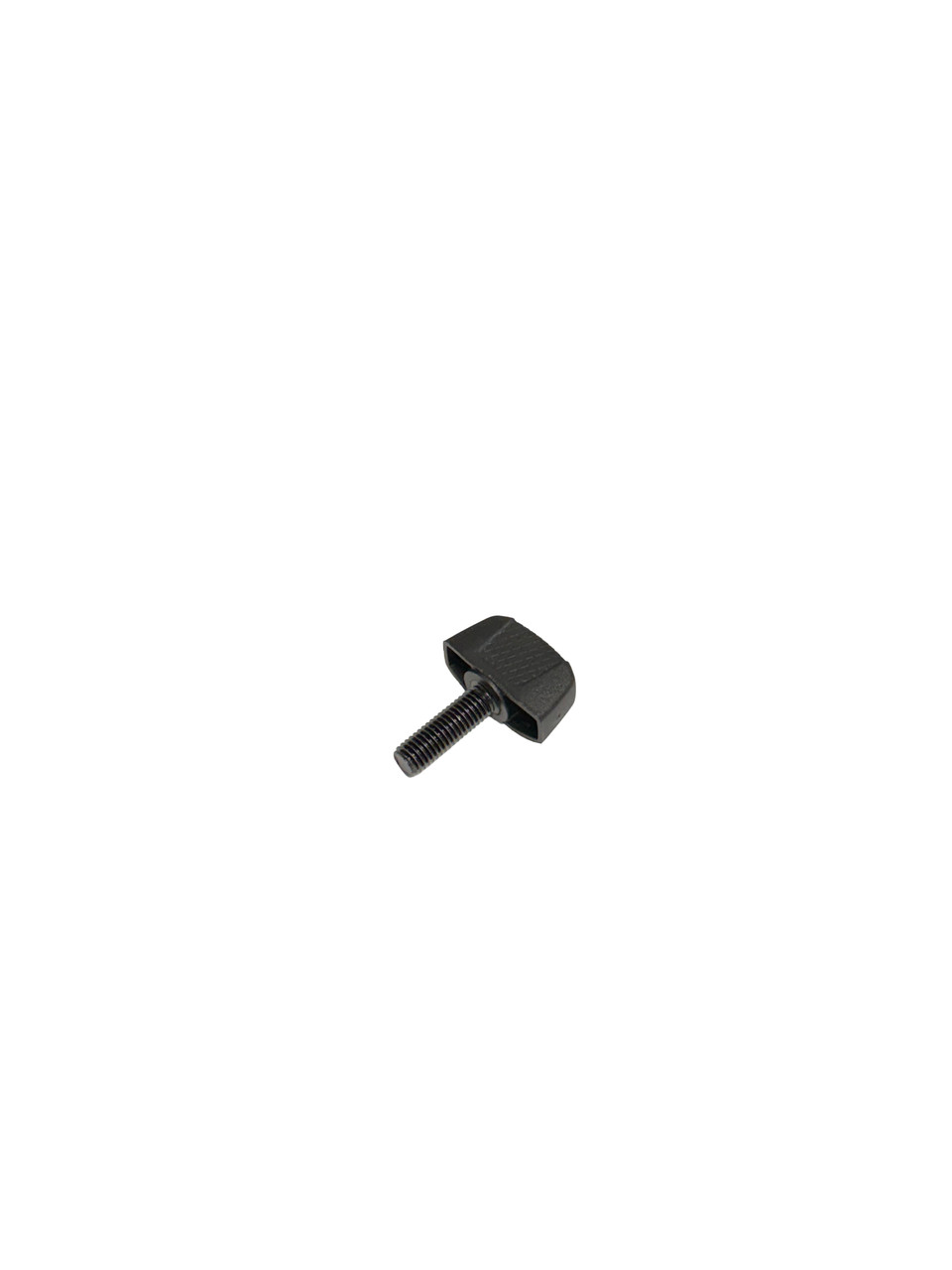

Milwaukee Fence Lock Knob
Model Number: 43-98-0041
The Milwaukee 43-98-0041 is a genuine OEM Fence Lock Knob for the 2734-20 M18 FUEL 10 in. Dual Bevel Sliding Compound Miter Saw. This is the threaded clamping knob that locks the upper sliding fence sections in position on the saw base. On a dual bevel miter saw the upper fence must slide outboard to clear the blade and the motor arm when the head is tipped into a bevel cut, then slide back inboard and lock down to provide full workpiece support for square and miter cuts. The fence lock knob is what holds that setting. When the knob is working correctly the fence stays exactly where the operator set it through repeated cuts, which is what keeps the saw cutting accurately. When the knob is stripped, cracked at the insert, or missing, the fence creeps under the pressure of a workpiece being pushed against it, and the result is cuts that drift out of square in a way that looks like a saw calibration problem but is not. These knobs are among the most commonly damaged parts on any jobsite miter saw because they protrude from the base, take direct impact when the saw is loaded into a truck or dropped off a stand, and are frequently overtightened by hand until the threaded insert spins free of the plastic body.
Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee service parts diagram before placing your order, since running production changes can alter part compatibility within the same catalog number. The 43-98-0041 Fence Lock Knob is documented at Figure 180 on the Base Assembly page of bulletin 54-40-2730 for the 2734-20 with serial number H17A, and the bulletin lists a quantity of (2) required per saw, one for the left sliding fence and one for the right. The same part number serves both positions, so there is no left-hand or right-hand version to sort out, but if both knobs are damaged you will need to order two. Take care not to confuse this knob with the other knobs on the same saw, since the part numbers run close together: 43-98-0043 is the Vise Knob at Figure 189 on the material clamp, and 44-20-0652 is the Slide Lock Knob at Figure 135 on the table assembly. The sliding fences themselves are not carried as individual service numbers and are supplied only through the 28-35-0090 Left Fence Assembly and the 28-35-0095 Right Fence Assembly, and the M12 x 18mm T-25 fence set screws at Figure 179 are ordered separately as 05-86-0600.
Features
- Genuine Milwaukee OEM service part, not an aftermarket substitute
- Locks the upper sliding fence in position on the 2734-20 miter saw base
- Same part number serves both the left and right fence positions
- Restores positive fence clamping so settings hold through repeated cuts
- Corrects fence creep that causes cuts to drift out of square
- Threaded insert molded to Milwaukee factory specification for correct clamping force
- Direct-fit replacement requiring no modification or retapping
- Knurled grip profile designed for hand tightening with gloves on
- Common wear and impact item on transported jobsite miter saws
- Documented at Figure 180 on Milwaukee service parts bulletin 54-40-2730
- Replacing both knobs at once restores consistent clamping feel across the fence
- Backed by Milwaukee OEM quality control for consistent thread fit and durability
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 43-98-0041
- Official Description: Fence Lock Knob
- Component Type: Fence Clamping Knob and Adjustment Hardware
- Primary Fitment: 2734-20 M18 FUEL 10 in. Dual Bevel Sliding Compound Miter Saw, serial H17A
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 180, Base Assembly, Bulletin 54-40-2730
- Quantity: Sold individually, (2) required per saw
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Milwaukee 43-98-0041 Fence Lock Knob
The sliding fences are NOT included and are not carried as individual service numbers - they are supplied only through the 28-35-0090 Left Fence Assembly or the 28-35-0095 Right Fence Assembly. The M12 x 18mm T-25 fence set screws at Figure 179 are NOT included and are ordered separately as part number 05-86-0600. Note that the 2734-20 requires a quantity of (2) fence lock knobs, so order two to replace the complete set. Always verify by serial number using Milwaukee's online parts lookup before ordering.
