Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:
Milwaukee Linkage/Spring Service Kit
Model Number: 43-40-0021
The Milwaukee 43-40-0021 is a genuine OEM Linkage/Spring Service Kit for the 2823-20 M18 FUEL 21 in. Self-Propelled Dual Battery Mower. This kit services the deck height adjustment system, the mechanism that lets the operator raise and lower the cutting deck through its full range of cut heights using the single-point height adjustment handle. The kit is built around the Height Adjustment Linkage Weldment, the welded steel linkage arm that transfers motion from the adjustment handle to the deck itself, and it is packaged together with the Deck Height Adjustment Spring that holds the linkage under tension so the deck stays locked at the selected height rather than settling under its own weight during a cut. Also included is the E-Retaining Ring hardware that secures the linkage at its pivot points. Milwaukee groups these components into a single service kit because they wear as a system - a stretched or broken spring puts uneven load on the linkage, and a worn linkage pivot lets the spring pull out of alignment. Symptoms that call for this kit include a deck that will not hold its set height, a height adjustment handle that feels loose or will not latch into a detent, visible deflection or bending in the linkage arm, or a spring that has stretched, corroded, or separated at an end loop.
Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee service parts diagram before placing your order, since running production changes can alter part compatibility within the same catalog number. The 43-40-0021 Linkage/Spring Service Kit is the Figure 219 component on bulletin 54-00-2823 for the 2823-20, and its component parts are documented on that bulletin as Figure 40, Figure 60, and Figure 73. Note that several adjacent height adjustment components are not carried as individual service numbers on this bulletin and are not included in this kit. The Height Adjustment Handle (Figure 69), the Deck Height Adjustment Torsion Spring (Figure 70), the Cotter Pin (Figure 71), and the Height Adjustment Backstop (Figure 34) are all supplied only through the larger 23-30-0017 Transmission and Motor Assembly at Figure 216, so if your diagnosis points to the handle or backstop rather than the linkage and spring, that is the assembly you need instead. The Rear Axle Weldment (Figure 72) is likewise part of that assembly and is not included here. Front-end height and axle components are serviced separately through the 42-12-0024 Front Axle Service Kit at Figure 207.
Features
- Genuine Milwaukee OEM service kit, not an aftermarket substitute
- Services the deck height adjustment linkage system on the 2823-20 self-propelled mower
- Supplied as a complete kit so the linkage and spring are replaced together as a matched set
- Height Adjustment Linkage Weldment transfers handle motion to the cutting deck
- Deck Height Adjustment Spring maintains tension so the deck holds its selected cut height
- E-Retaining Ring hardware included to secure the linkage at its pivot points
- Corrects a deck that drops, settles, or will not lock at the set height
- Manufactured to Milwaukee factory tolerances for correct linkage geometry and travel
- Direct-fit replacement requiring no modification, drilling, or welding
- Documented at Figure 219 on Milwaukee service parts bulletin 54-00-2823
- Replacing the spring and linkage as a set prevents repeat failure from uneven loading
- Restores full range of cut height selection and proper deck leveling
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 43-40-0021
- Official Description: Linkage/Spring Service Kit
- Component Type: Deck Height Adjustment Linkage and Spring Service Kit
- Primary Fitment: 2823-20 M18 FUEL 21 in. Self-Propelled Dual Battery Mower
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 219, Bulletin 54-00-2823
- Component Figures Included: Figure 40, Figure 60, Figure 73
- Quantity: (1) kit required per mower
- Part Type: Genuine Milwaukee OEM Service Kit

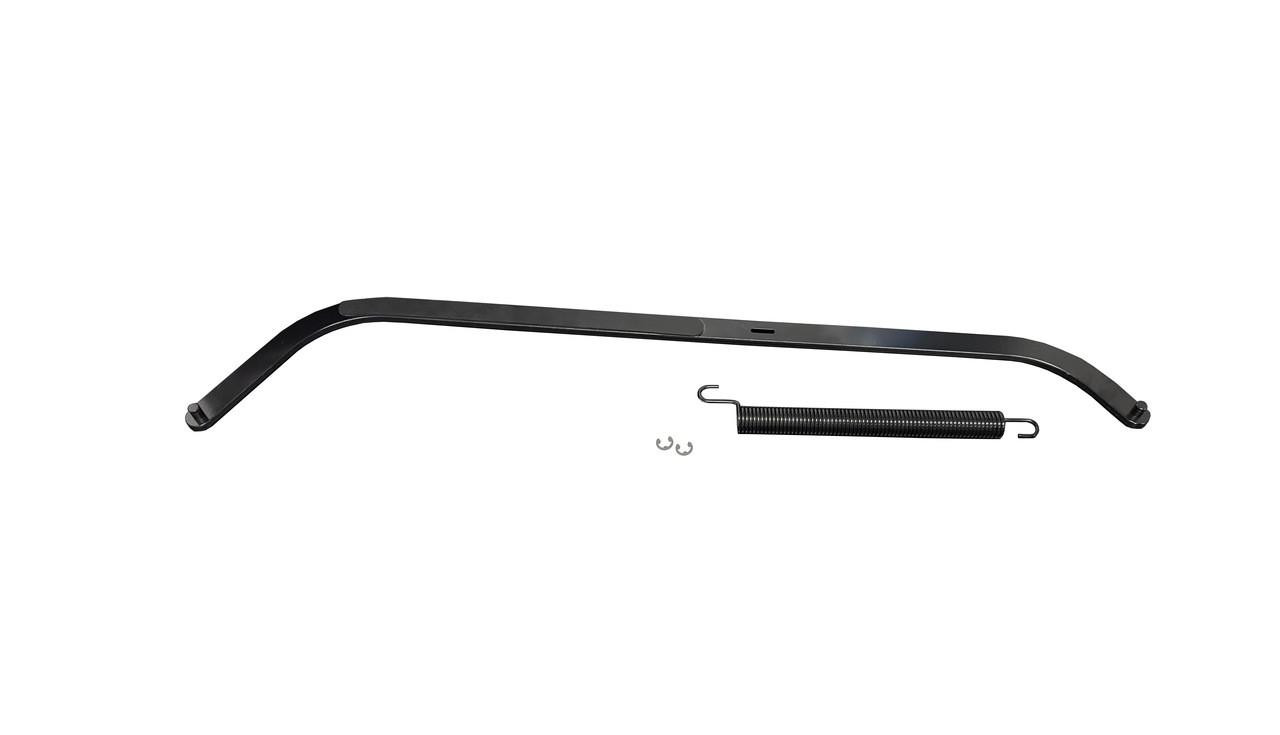

Includes
- (1) Milwaukee 43-40-0021 Linkage/Spring Service Kit, containing:
- (1) Height Adjustment Linkage Weldment - Figure 60
- (1) Deck Height Adjustment Spring - Figure 40
- (2) E-Retaining Ring - Figure 73, quantity as documented on bulletin 54-00-2823
The Height Adjustment Handle (Figure 69), Deck Height Adjustment Torsion Spring (Figure 70), Cotter Pin (Figure 71), and Height Adjustment Backstop (Figure 34) are NOT included and are supplied only through the 23-30-0017 Transmission and Motor Assembly at Figure 216. The Rear Axle Weldment (Figure 72) is NOT included and is likewise part of that assembly. Always verify by serial number using Milwaukee's online parts lookup before ordering.
