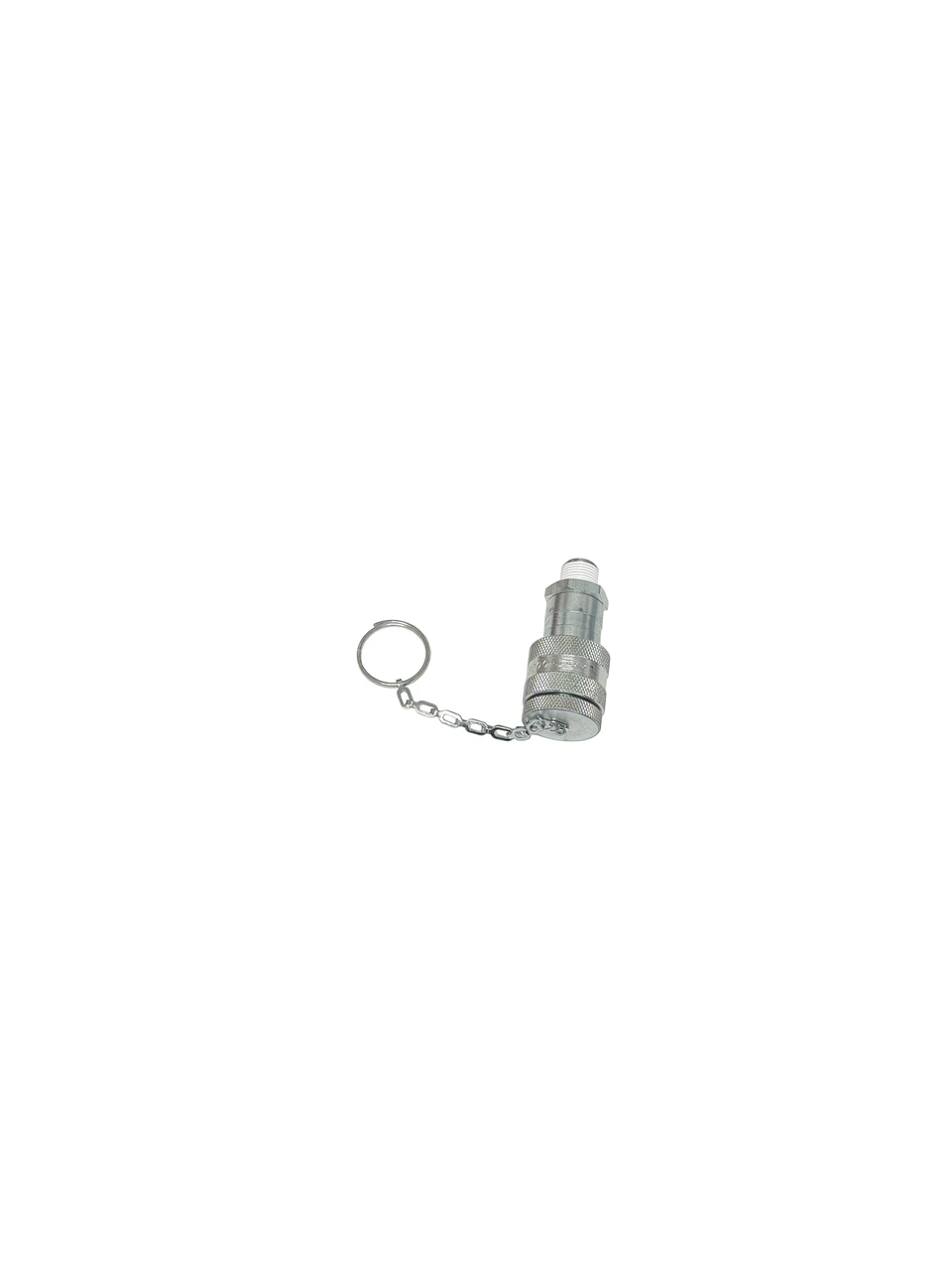

Milwaukee High Flow Coupler Service Kit with Plug
Model Number: 42-90-0026
The Milwaukee 42-90-0026 is a genuine OEM High Flow Coupler Service Kit with Plug for the 2774-20 M18 FORCE LOGIC 10,000 PSI Hydraulic Pump. The high flow coupler is the hydraulic quick-connect fitting at the pump's outlet: the hydraulic hose for a connected tool, such as a knockout tool, crimper, or cutter, couples to it, and the pump's high-pressure hydraulic flow passes through it to drive that tool. This kit supplies the high flow coupler, its coupler plug, and the o-ring that seals the connection, so it provides the complete coupler and its sealing parts together. Because this coupler operates at up to 10,000 psi (700 bar), it is a safety-critical, high-pressure component: only couplers rated 10,000 psi or higher may be used on this pump, and a worn, leaking, or damaged coupler must be replaced with the correct OEM part, not a lower-rated substitute. Using the genuine Milwaukee OEM kit ensures the correct high-pressure rating, thread, and seal for this hydraulic system.
This kit is identified as the High Flow Coupler Service Kit with Plug, Figure 88, on the Milwaukee service parts list for the 2774-20 M18 FORCE LOGIC 10,000 PSI Hydraulic Pump, serial K15A, bulletin 54-00-2774, and it consists of the coupler plug, the high flow coupler, and the o-ring (34-40-2774). Before servicing the coupler, always relieve the hydraulic pressure: remove the battery pack, then push and hold the manual pressure release button for five seconds. To replace the coupler, steady the coupler swivel with one wrench while loosening or tightening the coupler with a second wrench, clean any old teflon tape from the swivel, apply only teflon tape to the coupler threads (about two wraps), and torque the coupler to 45 to 55 lb-ft. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM high flow coupler service kit with plug
- For the 2774-20 M18 FORCE LOGIC 10,000 PSI Hydraulic Pump
- Hydraulic quick-connect coupler at the pump's outlet
- Passes the pump's high-pressure flow to the connected hydraulic tool
- Rated for up to 10,000 psi (700 bar)
- Kit includes the high flow coupler, coupler plug, and o-ring (34-40-2774)
- Figure 88 on the service parts diagram (bulletin 54-00-2774, SER K15A)
- Only use couplers rated 10,000 psi (700 bar) or higher on this pump
- Relieve hydraulic pressure before servicing the coupler
- Apply teflon tape only; torque the coupler to 45 to 55 lb-ft
- Replaces a worn, leaking, or damaged coupler
- Sold as one kit
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 42-90-0026
- Official Description: High Flow Coupler Service Kit with Plug
- Component Type: Hydraulic high-flow quick-connect coupler kit
- Pressure Rating: Up to 10,000 psi (700 bar)
- Primary Fitment: Milwaukee 2774-20 M18 FORCE LOGIC 10,000 PSI Hydraulic Pump, SER K15A
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 88 (bulletin 54-00-2774)
- Consists Of: High Flow Coupler, Coupler Plug, O-Ring (34-40-2774)
- Installation: Relieve pressure first; teflon tape only; torque coupler 45 to 55 lb-ft
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) High Flow Coupler
- (1) Coupler Plug
- (1) O-Ring (34-40-2774)
The hydraulic hose and tool, teflon tape, and the pump are NOT included and are sold separately. Always relieve hydraulic pressure before servicing, use only couplers rated 10,000 psi or higher, verify by serial number using Milwaukee's online parts lookup before ordering, and have hydraulic service performed by a qualified technician if you are not trained to work on high-pressure hydraulic equipment.
