Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

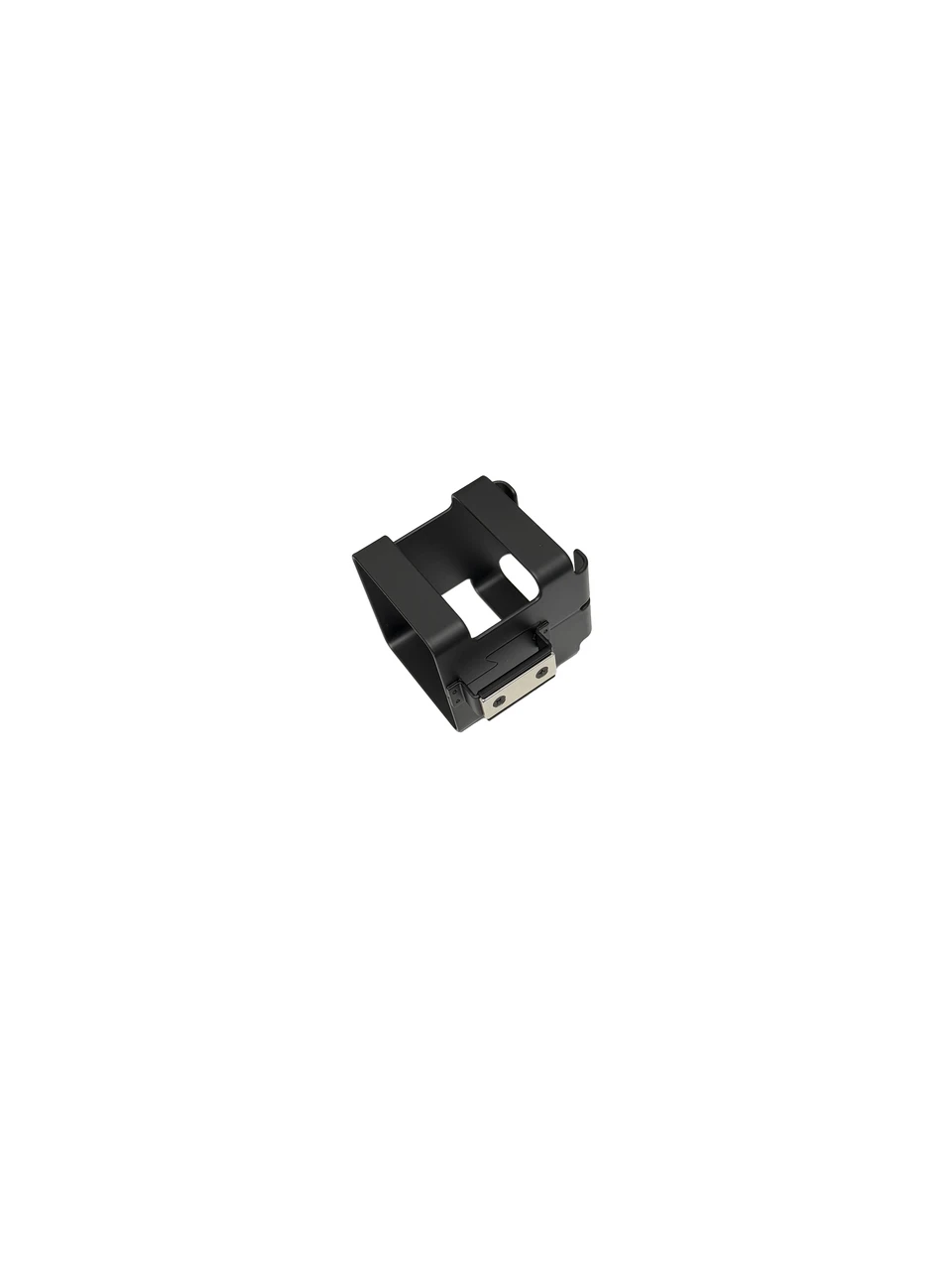

Milwaukee Magnetic Bracket Assembly
Model Number: 42-36-0022
The Milwaukee 42-36-0022 is a genuine OEM Magnetic Bracket Assembly for the 2787-20 and 2788-20 M18 FUEL 1-1/2 in. Magnetic Drills. It is a bracket assembly with a built-in magnet that holds a container in place while the tool is in use. On these magnetic drills, a cutting fluid, or coolant, is fed to the cutting arbor from a fluid bottle to keep the annular cutter and the workpiece cool and cleared of chips while drilling, and this bracket holds that container. The magnet lets the bracket and its container be mounted to a steel surface, so the fluid bottle can be positioned where it is needed and stays put during the cut. Because it is supplied as a complete assembly, the bracket, magnet, and mounting hardware are factory-matched for correct fit and secure holding.
A magnetic bracket that is cracked or bent, that no longer holds the container securely, or whose magnet will no longer hold should be replaced to restore a stable, dependable mount. This part is identified as Figure 178 on Milwaukee service bulletins 54-46-0410 for the 2787-20 and 54-46-0420 for the 2788-20, and it is also referenced for the 2787-059 and 2787-22 versions of the magnetic drill. Milwaukee's service parts list also refers to 42-36-0022 as the Container Bracket Assembly, so it may appear under either name, but it is the same part and is separate from the tool's magnetic base, which is a different assembly (42-20-2787). Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM Magnetic Bracket Assembly, Figure 178
- For the 2787-20 and 2788-20 M18 FUEL 1-1/2 in. Magnetic Drills
- Built-in magnet holds the bracket and its container to a steel surface
- Holds the cutting fluid bottle that feeds coolant to the cutter during drilling
- Keeps the fluid container positioned and secure during the cut
- Complete bracket assembly with magnet and mounting hardware
- Factory-matched components for correct fit and secure holding
- Restores a stable mount when the bracket is damaged or the magnet no longer holds
- Also referenced for the 2787-059 and 2787-22 magnetic drills
- Also listed by Milwaukee as the Container Bracket Assembly, the same part
- Separate from the tool's magnetic base assembly (42-20-2787)
- Verify catalog number and serial number before ordering
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 42-36-0022
- Official Description: Magnetic Bracket Assembly (also listed as Container Bracket Assembly)
- Component Type: Magnetic container bracket assembly
- Primary Fitment: Milwaukee 2787-20 and 2788-20 M18 FUEL 1-1/2 in. Magnetic Drills
- Also Referenced On: Milwaukee 2787-059 and 2787-22; verify applications and revisions using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 178, bulletin 54-46-0410 (2787-20) and 54-46-0420 (2788-20)
- Quantity: Sold individually
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Milwaukee 42-36-0022 Magnetic Bracket Assembly
The cutting fluid bottle, cutting fluid, and the magnetic drill are NOT included. This is the magnetic bracket assembly only. Always verify by serial number using Milwaukee's online parts lookup before ordering, since fitment can vary by production revision within the same catalog number.
