Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

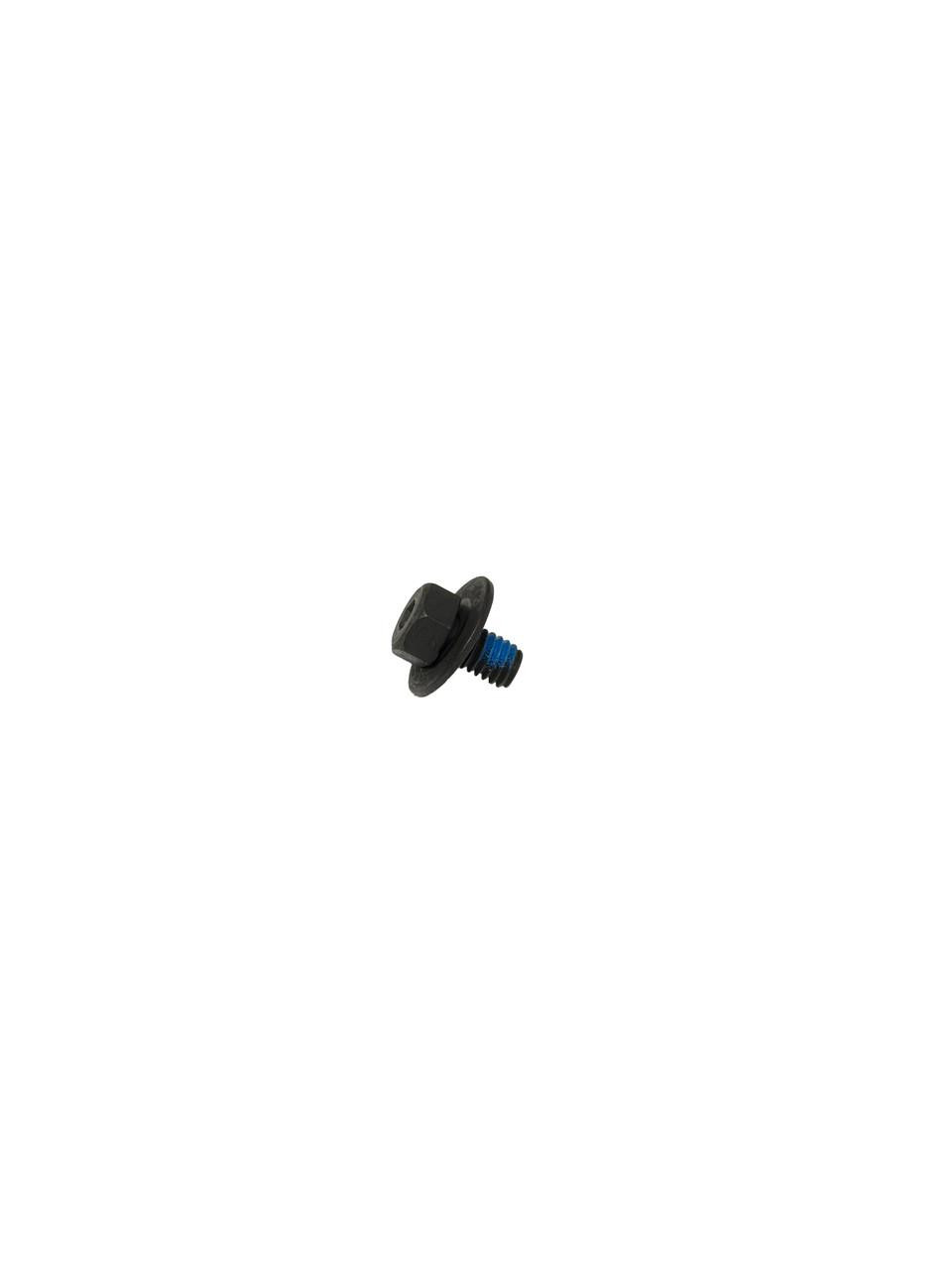

Milwaukee Moving Blade Fitted Bolt
Model Number: 42-32-0500
The Milwaukee 42-32-0500 is a genuine OEM Moving Blade Fitted Bolt for the 2472-20 M12 600 MCM Cable Cutter. This cutter uses a powered scissor-style cutting action, driving a moving blade against a stationary blade to shear through copper cable up to 600 MCM and aluminum cable up to 750 MCM in a single clean, installation-ready cut. The fitted bolt is what secures the moving blade to its pivot in the cutting head. Unlike an ordinary fastener, a fitted bolt is precision-ground so its shank diameter closely matches the mounting hole, which locates the blade exactly rather than allowing it to shift under the very high loads generated when cutting large-gauge cable. That precise location is what keeps the moving blade and the stationary blade in correct shear alignment through the cut. Any play at this pivot translates directly into a poor, crushed, or incomplete cut rather than the flat, round, installation-ready finish the tool is designed to produce, along with accelerated blade wear and, in the worst case, a blade that works loose in service. Because the bolt carries the full cutting load on every stroke, it is a wear item and should be inspected and replaced whenever the blade is serviced.
Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee service parts diagram before placing your order, since running production changes can alter part compatibility within the same catalog number. This bolt is documented at position A-33 on the 2472-20 service parts diagram, with a quantity of one required per tool. Take care not to confuse this bolt with its companion on the same tool: the Stationary Blade Fixed Bolt at position A-35 is a separate part ordered as 42-32-0525. When servicing the cutting head it is common to replace the blade and both bolts together so the head goes back together with fresh, correctly located hardware. The moving and stationary blades themselves are not included with this bolt and are supplied as the blade set under part number 48-44-0410, and the plate washer at position A-37 is ordered separately as 45-88-8210.
Features
- Genuine Milwaukee OEM service part, not an aftermarket substitute
- Secures the moving blade to its pivot in the 2472-20 cable cutter cutting head
- Precision-ground fitted shank locates the blade exactly with no play
- Maintains correct shear alignment between the moving and stationary blades
- Manufactured to Milwaukee factory tolerances for exact shank diameter and fit
- Supports the flat, round, installation-ready cut the tool is designed to deliver
- Corrects crushed or incomplete cuts caused by a blade shifting under load
- Prevents blade loosening under the high loads of cutting large-gauge cable
- Direct-fit replacement requiring no modification or drilling
- Wear item that should be replaced whenever the blade is serviced
- Documented at position A-33 on the 2472-20 service parts diagram
- Companion to the 42-32-0525 Stationary Blade Fixed Bolt at position A-35
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 42-32-0500
- Official Description: Moving Blade Fitted Bolt
- Component Type: Blade Mounting Fitted Bolt
- Primary Fitment: 2472-20 M12 600 MCM Cable Cutter
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Position A-33 on the 2472-20 service parts diagram
- Quantity: Sold individually, (1) required per tool
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Milwaukee 42-32-0500 Moving Blade Fitted Bolt
The moving and stationary blades are NOT included and are supplied as the blade set under part number 48-44-0410. The Stationary Blade Fixed Bolt (42-32-0525, position A-35) and the Plate Washer (45-88-8210, position A-37) are NOT included and are ordered separately. Always verify by serial number using Milwaukee's online parts lookup before ordering.
