Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

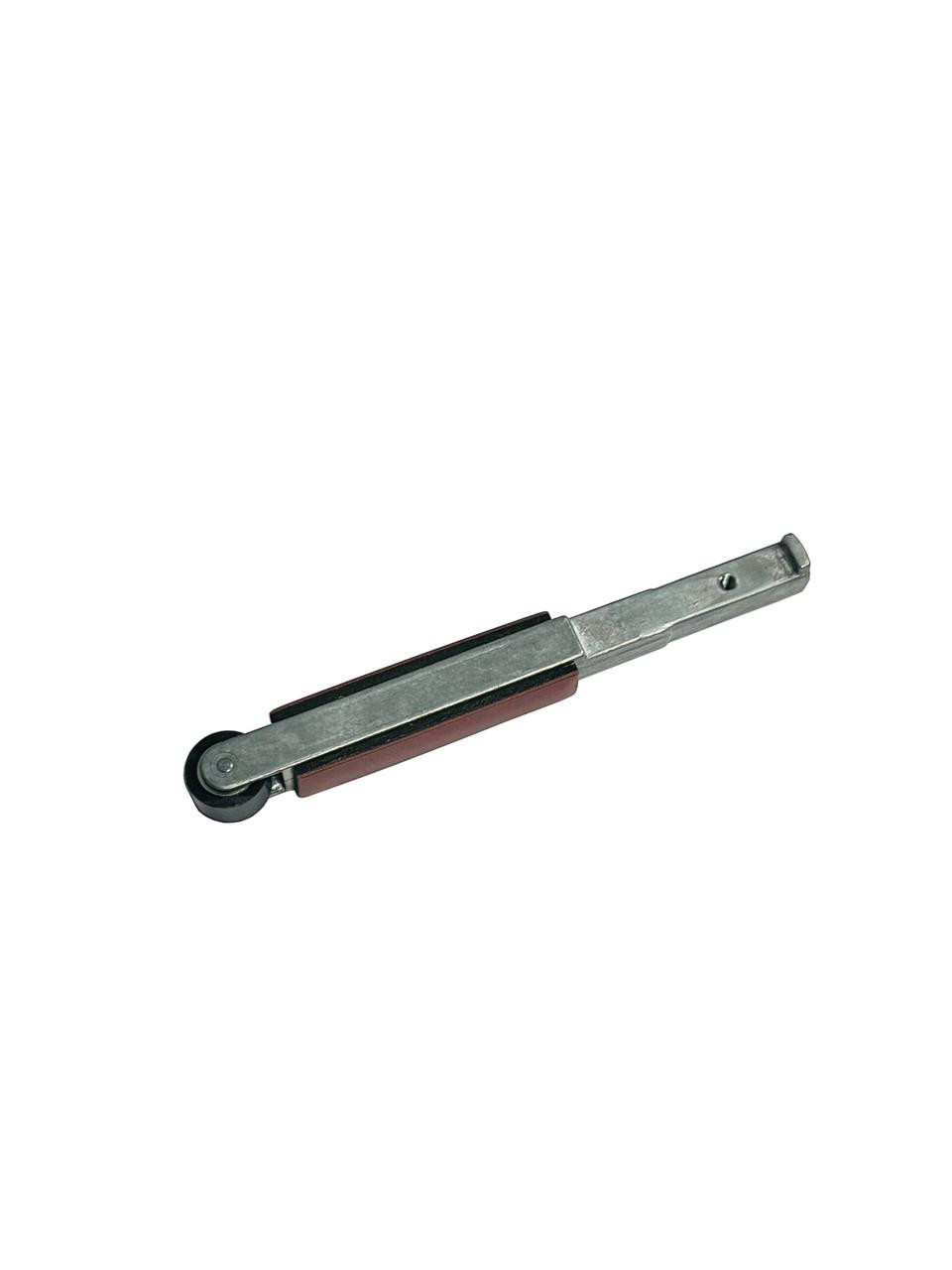

Milwaukee 1/2 in. Contact Arm Assembly
Model Number: 42-09-0260
The Milwaukee 42-09-0260 1/2 in. Contact Arm Assembly is a genuine OEM replacement part designed for use on Milwaukee 1/2 in. Bandfile tools, including the 6101 (serial codes 878D and 878E) and 6101-6 (serial codes 878E and 878F) corded 5.5 Amp Bandfiles. The contact arm is the metal arm that mounts to the bandfile head and carries the platen and shoe assembly which the abrasive belt rides against during operation. As the operator presses the running belt against the workpiece, the contact arm transfers the cutting force from the belt-platen interface back through the head, allowing controlled, precise material removal for weld dressing, deburring, polishing, finish grinding, and tight-radius metal finishing work that a standard belt sander cannot reach. Manufactured to Milwaukee's exact factory tolerances and pivot geometry, this OEM contact arm restores the proper belt-to-workpiece contact pressure and arm rigidity required for clean abrasive results after the original arm becomes bent, cracked, worn at the pivot, or damaged from impact.
Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee bandfile service parts diagram before ordering, since the 42-09-0260 covers multiple serial-code variants of the 6101 and 6101-6 bandfiles. The 42-09-0260 is the Figure 50 component on Milwaukee service bulletins 54-38-0828 and 54-38-0829 and works directly with the companion 42-09-0250 Tension Arm (Fig 49), which holds the idler wheel and maintains running tension on the abrasive belt. When replacing the contact arm assembly, Milwaukee recommends inspecting the tension arm, dust cover (42-92-1200), support rod (45-60-0450), and 1/2 in. platen (44-66-5518) for wear at the same time, since the head-assembly components share the same service life and damage to one component is often accompanied by wear elsewhere in the head. All companion parts are sold separately. Verify by serial number using Milwaukee's online parts lookup before ordering to confirm correct fitment for your specific bandfile.
Features
- Genuine Milwaukee OEM replacement, direct factory part for the 42-09-0260 reference
- Designed for Milwaukee 1/2 in. Bandfile tools, including 6101 and 6101-6 corded 5.5 Amp Bandfiles
- Carries the platen and shoe assembly the abrasive belt rides against during operation
- Transfers cutting force from the belt-platen interface for controlled, precise material removal
- Manufactured to Milwaukee factory tolerances and pivot geometry for proper arm rigidity
- Direct-fit replacement, no modification required for installation
- Restores correct belt-to-workpiece contact pressure after wear, bending, or impact damage
- Suitable for weld dressing, deburring, polishing, finish grinding, and tight-radius metal finishing
- Companion part: 42-09-0250 Tension Arm, sold separately, recommended for inspection at the same time
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 42-09-0260
- Official Description: 1/2 in. Contact Arm Assembly
- Component Type: Bandfile Contact Arm with Platen Mount
- Primary Fitment: Milwaukee 1/2 in. Bandfile tools
- Confirmed Compatible Models: 6101 (878D, 878E) and 6101-6 (878E, 878F) corded 5.5 Amp Bandfiles
- Service Bulletin Reference: 54-38-0828 and 54-38-0829, Figure 50
- Belt Compatibility: 1/2 in. width abrasive belts
- Quantity: Sold individually, 1 assembly per order
- Part Type: OEM Service Replacement Part
Includes
- (1) Milwaukee 42-09-0260 1/2 in. Contact Arm Assembly
- Note: Tension Arm (Milwaukee 42-09-0250) is NOT included and sold separately
- Note: 1/2 in. platen (Milwaukee 44-66-5518), dust cover (Milwaukee 42-92-1200), and support rod (Milwaukee 45-60-0450) are NOT included and sold separately
- Note: Shoulder screws and mounting hardware are NOT included and sold separately — minimum quantity of 2 typically required for installation
- Note: Abrasive belts are NOT included — select the correct 1/2 in. belt grit and length for your application
- Note: Verify your tool's catalog number and serial number against the official Milwaukee parts diagram before ordering
