Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

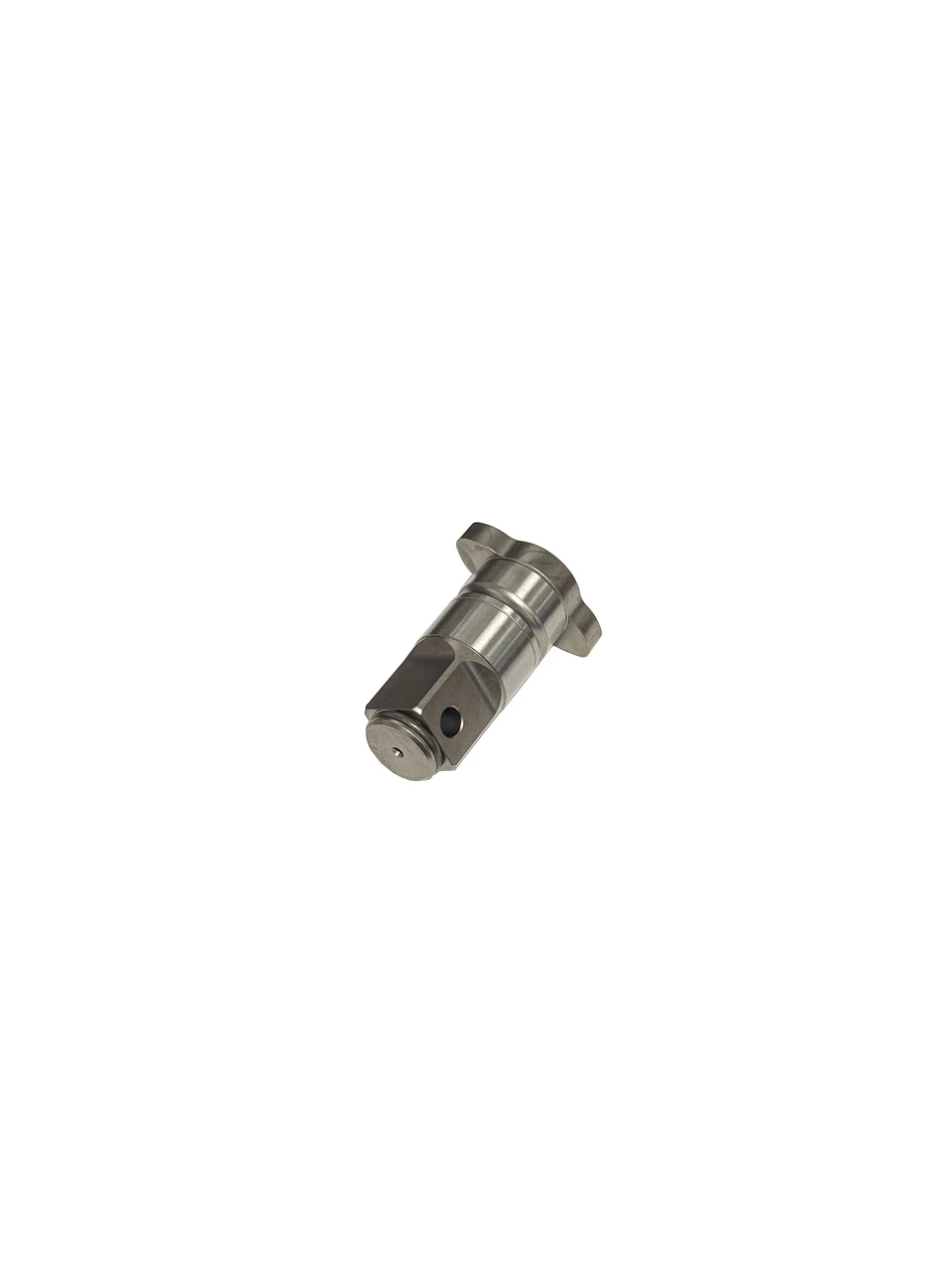

Milwaukee 1 in. Square Drive Anvil Assembly
Model Number: 42-06-2867
The Milwaukee 42-06-2867 is a genuine OEM 1 in. Square Drive Anvil Assembly for the 2867-20 M18 FUEL ONE-KEY 1 in. Impact Wrench. The anvil is the output shaft of the impact wrench: the socket mounts to its 1 in. square drive, and the anvil takes the repeated hammer blows from the impact mechanism and delivers them as rotational torque to the fastener. On this wrench, the world's first cordless 1 in. high torque impact wrench with up to 1,800 ft-lbs of nut-busting torque, the anvil uses a friction ring, Milwaukee's hog ring, seated over an o-ring to retain the socket, and it has a thru-hole to accept a retaining pin where needed. Because the anvil carries the full impact and torque output, it is a high-load part that can wear, round off at the drive, crack, or lose socket retention over time, which shows up as sockets slipping off or reduced effective torque. Replacing it with the genuine Milwaukee OEM anvil assembly restores a true 1 in. drive and secure socket retention, where an off-spec anvil may not hold sockets or stand up to the tool's torque.
This anvil assembly is identified as the 1 in. Square Drive Anvil Assembly, Figure 102, on the Milwaukee service parts list for the 2867-20 M18 FUEL ONE-KEY 1 in. Square Impact Wrench, bulletin 54-26-2860. It is supplied as a complete set that includes the 1 in. square drive anvil, the hog ring (44-90-9001), and the o-ring (34-40-2867) that seats under the hog ring, so it provides the anvil and its socket-retention parts together. Milwaukee's service instructions call for greasing the anvil washer and the anvil surface on reassembly. The D-handle and extended-anvil versions of the 1 in. impact wrench can use different anvil assemblies, so confirm the correct anvil for your exact tool. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM 1 in. square drive anvil assembly
- For the 2867-20 M18 FUEL ONE-KEY 1 in. Impact Wrench
- Output shaft that the socket mounts to
- Takes the hammer blows and delivers rotational torque to the fastener
- Friction-ring (hog ring) retention over an o-ring, with a thru-hole for a retaining pin
- Built for the wrench's up to 1,800 ft-lbs of torque
- Figure 102 on the service parts diagram (bulletin 54-26-2860)
- Complete set: anvil, hog ring (44-90-9001), and o-ring (34-40-2867)
- Restores a true 1 in. drive and secure socket retention when the old anvil is worn
- Grease the anvil washer and surface on reassembly
- D-handle and extended-anvil 1 in. wrenches may use a different anvil; verify your tool
- Sold as one assembly
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 42-06-2867
- Official Description: 1 in. Square Drive Anvil Assembly
- Component Type: Impact wrench output anvil (1 in. square drive) with socket retention
- Primary Fitment: Milwaukee 2867-20 M18 FUEL ONE-KEY 1 in. Impact Wrench
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup; D-handle and extended-anvil versions may use a different anvil
- Parts Diagram Position: Figure 102 (bulletin 54-26-2860)
- Consists Of: 1 in. Square Drive Anvil (Fig 13), Hog Ring (44-90-9001, Fig 11), O-Ring (34-40-2867, Fig 12)
- Quantity: Sold as one assembly (1)
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) 1 in. Square Drive Anvil
- (1) Hog Ring (44-90-9001)
- (1) O-Ring (34-40-2867)
The socket and the tool are NOT included and are sold separately. Always verify by serial number using Milwaukee's online parts lookup before ordering, since fitment can vary by production revision within the same catalog number.
