Product Description

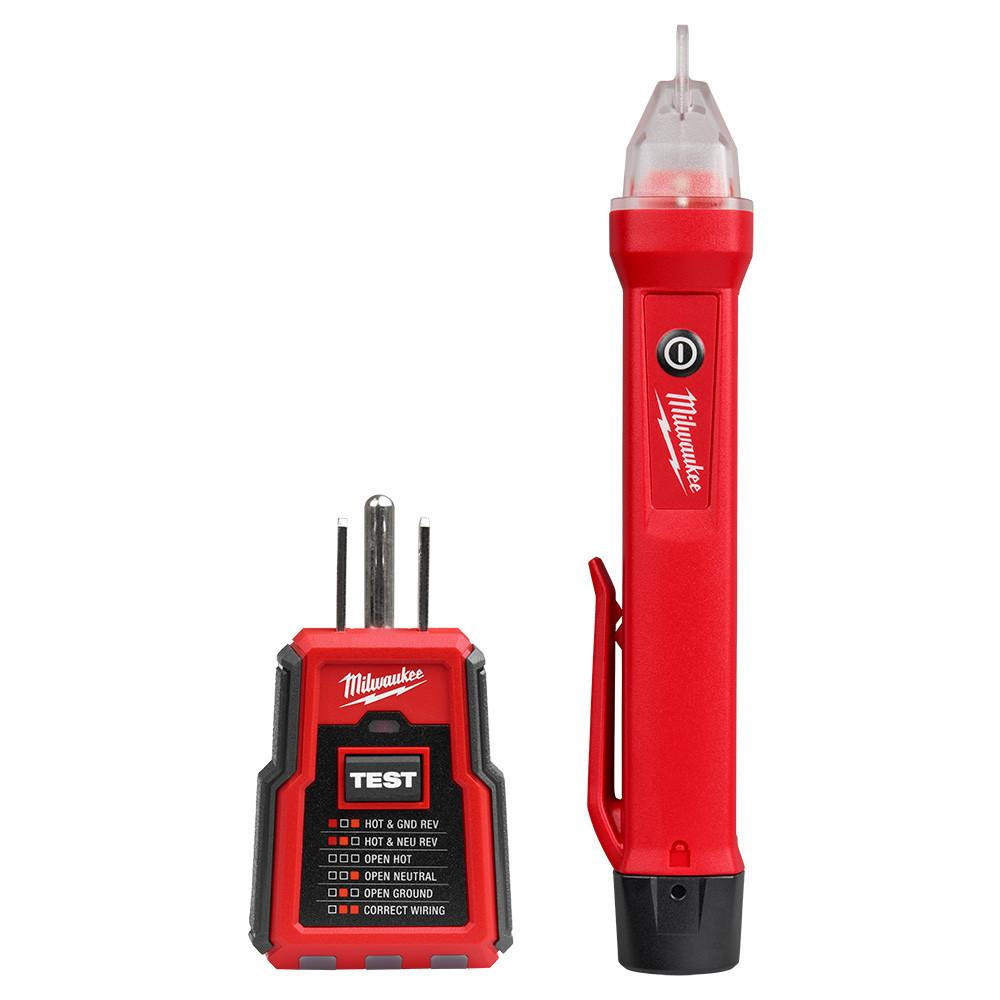

Milwaukee GFCI Receptacle Tester and Voltage Detector Kit
Model Number: 3210-20
The Milwaukee 3210-20 GFCI Receptacle Tester and Voltage Detector Kit is a two-piece electrical test kit built for professional electricians, pairing Milwaukee's non-contact Voltage Detector (2200-20) with the GFCI Receptacle Tester (2223-20) into one essential troubleshooting and verification package. The kit covers the two most common day-to-day electrical safety checks: confirming whether a conductor or fixture is energized before working on it, and verifying that a receptacle is correctly wired and that its GFCI protection is functioning. Both tools are designed for residential, commercial, and industrial applications and are built to withstand the abuse of regular jobsite use, including a tested 6 ft. drop rating on each piece. The Voltage Detector ships with batteries included, ready to use out of the box.
The Voltage Detector carries the highest safety rating in the industry at CAT IV 1000V, detecting a wide 50V to 1000V AC range across non-contact testing scenarios from low-voltage control wiring through full-voltage service entrance work. A red LED indicator and audible tone fire when voltage is detected, giving the operator clear, immediate confirmation that a conductor is energized. The reinforced tip design improves durability against repeated probe insertion into outlets, junction boxes, and breaker panels, while the durable over-molded grip and compact pocket-clip form factor make the detector practical for one-handed use throughout the workday. The detector requires two AAA batteries which are included in the kit, and is backed by a 1-year warranty.
The GFCI Receptacle Tester plugs directly into a standard 120V receptacle and uses LED visual indicators to identify the outlet's wiring condition, including hot and ground reversed, hot and neutral reversed, open hot, open neutral, open ground, and correct wiring. The tester does not require batteries since it draws power from the receptacle itself during the test. Activating the test button on a properly wired GFCI outlet trips the device, and the visual indicator confirms whether GFCI protection is functioning correctly. The tester carries a CAT II 300V safety rating appropriate for receptacle-level work and is covered by a 2-year warranty, while the Voltage Detector is covered by a separate 1-year warranty. For users who need an LCD display showing live voltage and trip time data, the Digital version of this kit (Milwaukee 3211-20 with LED work light on the voltage detector) is available as a separate listing. Together this kit gives an electrician the essential verification tools needed for service calls, new construction commissioning, renovation troubleshooting, and any work where confirming electrical safety conditions matters more than getting the job done fast.
Features
- Two-piece electrical test kit for residential, commercial, and industrial applications
- Non-contact Voltage Detector with industry-leading CAT IV 1000V safety rating
- Voltage detection range of 50V to 1000V AC
- Red LED and audible tone indicators for clear voltage presence confirmation
- Reinforced tip design on Voltage Detector for increased durability
- Durable belt clip and over-molded grip for one-handed jobsite use
- GFCI Receptacle Tester with LED visual indicators for outlet wiring verification
- Identifies six wiring conditions including correct wiring and four common faults
- Verifies the functionality of ground fault protection on GFCI outlets
- CAT II 300V safety rating on the GFCI Receptacle Tester
- GFCI Receptacle Tester requires no batteries, draws power from the receptacle during testing
- Both tools built to withstand a 6 ft. drop
- Voltage Detector covered by a 1-year warranty
- GFCI Receptacle Tester covered by a 2-year warranty
- AAA batteries included for the Voltage Detector, ready to use out of the box
Specifications
- Manufacturer: Milwaukee Tool
- Catalog Number: 3210-20
- Kit Type: Two-Piece Electrical Test Kit (analog)
- Voltage Detector Model: 2200-20
- Voltage Detector Range: 50V to 1000V AC
- Voltage Detector Safety Rating: CAT IV 1000V
- Voltage Detector Indicators: Red LED and audible tone
- Voltage Detector Warranty: 1 Year Limited
- GFCI Receptacle Tester Model: 2223-20
- GFCI Tester Compatibility: Standard 120V receptacles
- GFCI Tester Safety Rating: CAT II 300V
- GFCI Tester Indicators: LED visual indicators
- GFCI Tester Battery Requirement: None (powered by receptacle)
- GFCI Tester Warranty: 2 Year Limited
- Drop Rating: 6 ft. on both tools
- Batteries Included: 2 AAA (for Voltage Detector)
Includes
- (1) Milwaukee 2200-20 Voltage Detector
- (1) Milwaukee 2223-20 GFCI Receptacle Tester
- (2) AAA Batteries (for the Voltage Detector)
- Note: For the digital version with LCD display showing live voltage and trip time plus an LED work light on the voltage detector, see the Milwaukee 3211-20 Digital GFCI Receptacle Tester and Voltage Detector with LED Kit
- Note: GFCI Receptacle Tester is designed for standard 120V receptacles only and is not rated for 240V or higher voltage outlet testing
