Product Description
**Milwaukee parts change not only by model# but also by serial number. Milwaukee's site lets you look up your tool's parts diagram. Enter Cat# and Select Service Parts. Also match Serial Number.

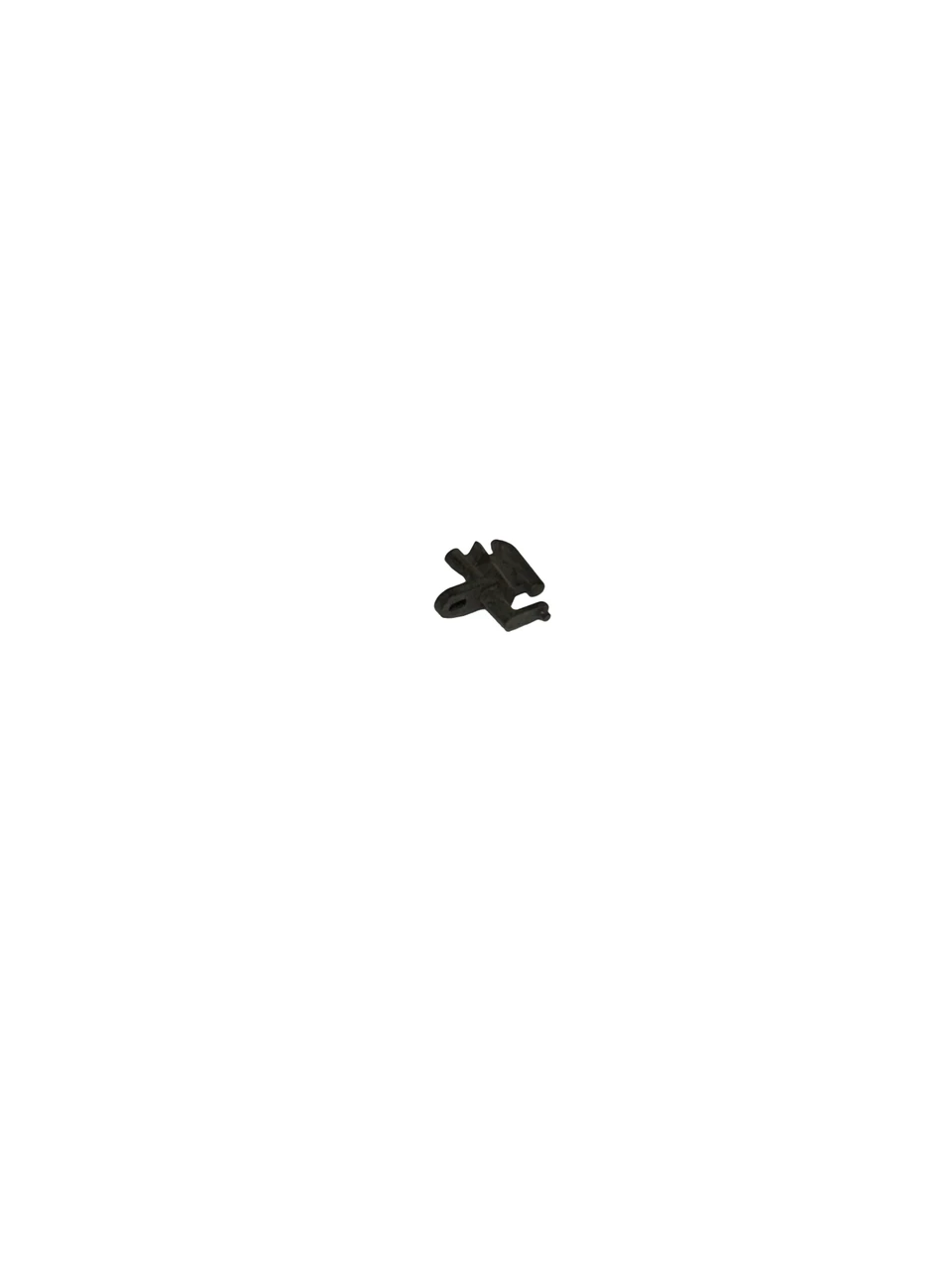

Milwaukee Forward / Reverse Lever
Model Number: 31-52-0275
The Milwaukee 31-52-0275 is a genuine OEM Forward / Reverse Lever for the 2415-20 M12 3/8 in. Right Angle Drill/Driver. The forward/reverse lever is the shuttle control the operator pushes to set the drill's rotation direction: push it in from the right side of the tool for forward (clockwise) rotation, from the left side for reverse (counterclockwise), and leave it centered for the lock-out position that prevents accidental starts. Because it is actuated constantly and sits in the switch area, the lever can crack, wear, or stop shifting cleanly, at which point the drill may be stuck in one direction, fail to lock out, or not respond. Replacing it with the genuine Milwaukee OEM lever restores clean, positive direction changes and the center lock-out, where an off-spec lever may not shift the switch or seat correctly.
This forward/reverse lever is identified as the Forward / Reverse Lever, Figure 3, on the Milwaukee service parts list for the 2415-20 M12 3/8 in. Right Angle Drill, serial C23A, bulletin 54-06-2415. It also serves the kit and service versions of this drill, the 2415-21 and 2415-059, and some parts sites list it as the forward/reversing button. It works with the drill's paddle trigger (31-92-0540) and switch assembly, and the wiring must be routed so it does not interfere with the lever, speed dial, and switch; those related parts are separate items. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM forward / reverse lever
- For the 2415-20 M12 3/8 in. Right Angle Drill/Driver
- The shuttle control that sets the drill's rotation direction
- Push from the right for forward, from the left for reverse
- Center position is the lock-out that prevents accidental starts
- Figure 3 on the service parts diagram (bulletin 54-06-2415, SER C23A)
- Also serves the 2415-21 and 2415-059 versions of this drill
- Sometimes listed as the forward/reversing button
- Restores clean, positive direction changes and the center lock-out
- Replace if the lever is cracked, worn, or will not shift
- Works with the paddle trigger (31-92-0540) and switch assembly
- Sold individually
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 31-52-0275
- Official Description: Forward / Reverse Lever
- Component Type: Right angle drill direction-selector shuttle lever
- Primary Fitment: Milwaukee 2415-20 M12 3/8 in. Right Angle Drill/Driver, SER C23A
- Also Referenced On: Milwaukee 2415-21 and 2415-059; verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 3 (bulletin 54-06-2415)
- Quantity: Sold individually (1 lever)
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Forward / Reverse Lever
The paddle trigger (31-92-0540), the switch assembly, and the drill are NOT included and are sold separately. Always verify by serial number using Milwaukee's online parts lookup before ordering.
