Product Description

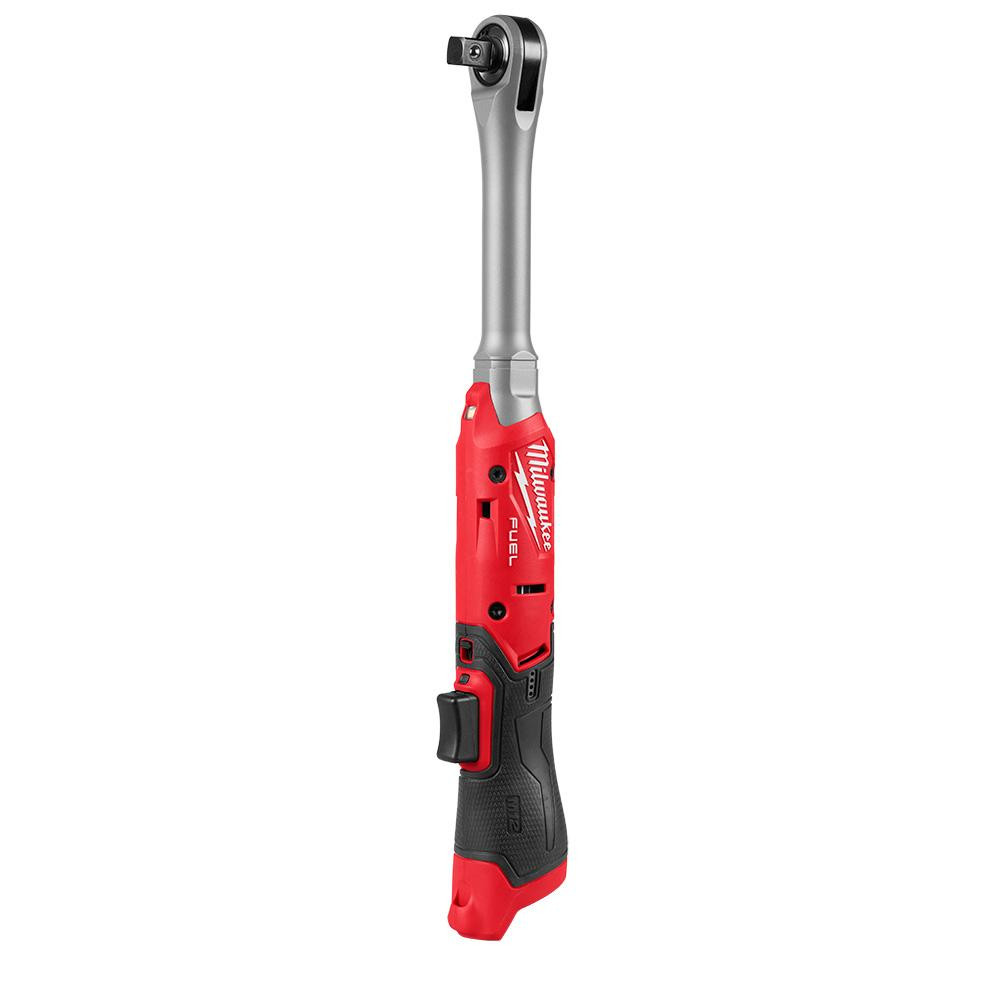

Milwaukee M12 FUEL 1/2 in. Extended Reach Ratchet
Model Number: 3055-20
The Milwaukee 3055-20 is the M12 FUEL 1/2 in. Extended Reach Ratchet, a cordless ratchet built for mechanics, maintenance technicians, and service pros who need to reach deep, tight fasteners without giving up power. It pairs a slim, compact head with an extended neck so you can get past obstructions and into engine bays, suspension work, and equipment service points that a standard-length ratchet cannot. The POWERSTATE Brushless Motor delivers up to 80 ft-lbs of maximum torque to break stubborn 1/2 in. fasteners loose, and a no-load speed of 300 RPM to run them off and on quickly, so the tool covers both the breakaway and the fast run-down of 1/2 in. drive work. A ball detent anvil holds standard 1/2 in. drive sockets securely during use.
The ratchet features a new modular trigger cap system that lets you switch between button and paddle trigger configurations for the control and comfort you prefer, along with a targeted LED work light for visibility in dim engine bays, a forward and reverse shuttle, and bi-directional motor firmware tuned for consistent breakaway torque in both directions. REDLINK PLUS Intelligence protects the tool from overload, overheating, and over-discharge for durability and run time, and when the motor is not engaged the ratchet can be worked by hand like a manual ratchet to finish or snug a fastener. As part of the Milwaukee M12 system, it runs on any M12 REDLITHIUM battery and shares the platform with 150-plus tools.
The 3055-20 is sold as a bare tool, so the battery and charger are purchased separately for users already on the M12 platform. It is the 1/2 in. member of Milwaukee's M12 FUEL Extended Reach Ratchet family, alongside the 3/8 in. 3059-20 and the 1/4 in. 3058-20, so choose the drive size that matches your sockets and torque needs. Compatible accessories include the M12 FUEL 1/2 in. Extended Reach Ratchet Protective Boot (49-16-3055) and the M12 FUEL Ratchet Modular Trigger Cap Kit. The tool is backed by Milwaukee's 5-year tool warranty.
Features
- M12 FUEL 1/2 in. Extended Reach Ratchet, bare tool
- Slim, compact head with extended neck for deep, tight-space access
- POWERSTATE Brushless Motor
- Up to 80 ft-lbs of maximum torque
- Up to 300 RPM no-load speed
- 1/2 in. square drive with ball detent anvil for secure socket retention
- Modular trigger cap: switch between button and paddle configurations
- Targeted LED work light
- Forward and reverse shuttle with bi-directional firmware for consistent breakaway torque
- REDLINK PLUS Intelligence protects from overload, overheating, and over-discharge
- Can be used manually like a hand ratchet when the motor is not engaged
- Runs on the Milwaukee M12 REDLITHIUM battery system (150-plus tools)
Specifications
- Manufacturer: Milwaukee Tool
- Catalog Number: 3055-20
- Tool: M12 FUEL 1/2 in. Extended Reach Ratchet
- Battery Platform: M12 (18V system battery sold separately)
- Drive Size: 1/2 in. square drive
- Maximum Torque: Up to 80 ft-lbs
- No-Load Speed: 300 RPM
- Length: 16.5 in.
- Bare Tool Weight: 2.2 lbs (without battery)
- Warranty: 5-Year Milwaukee Tool Warranty
- Part Type: Genuine Milwaukee Cordless Power Tool
Includes
- (1) M12 FUEL 1/2 in. Extended Reach Ratchet (3055-20)
- (1) Modular Paddle Cap
Battery and charger are NOT included; the 3055-20 is a bare tool. M12 REDLITHIUM batteries and chargers are sold separately.
