Product Description

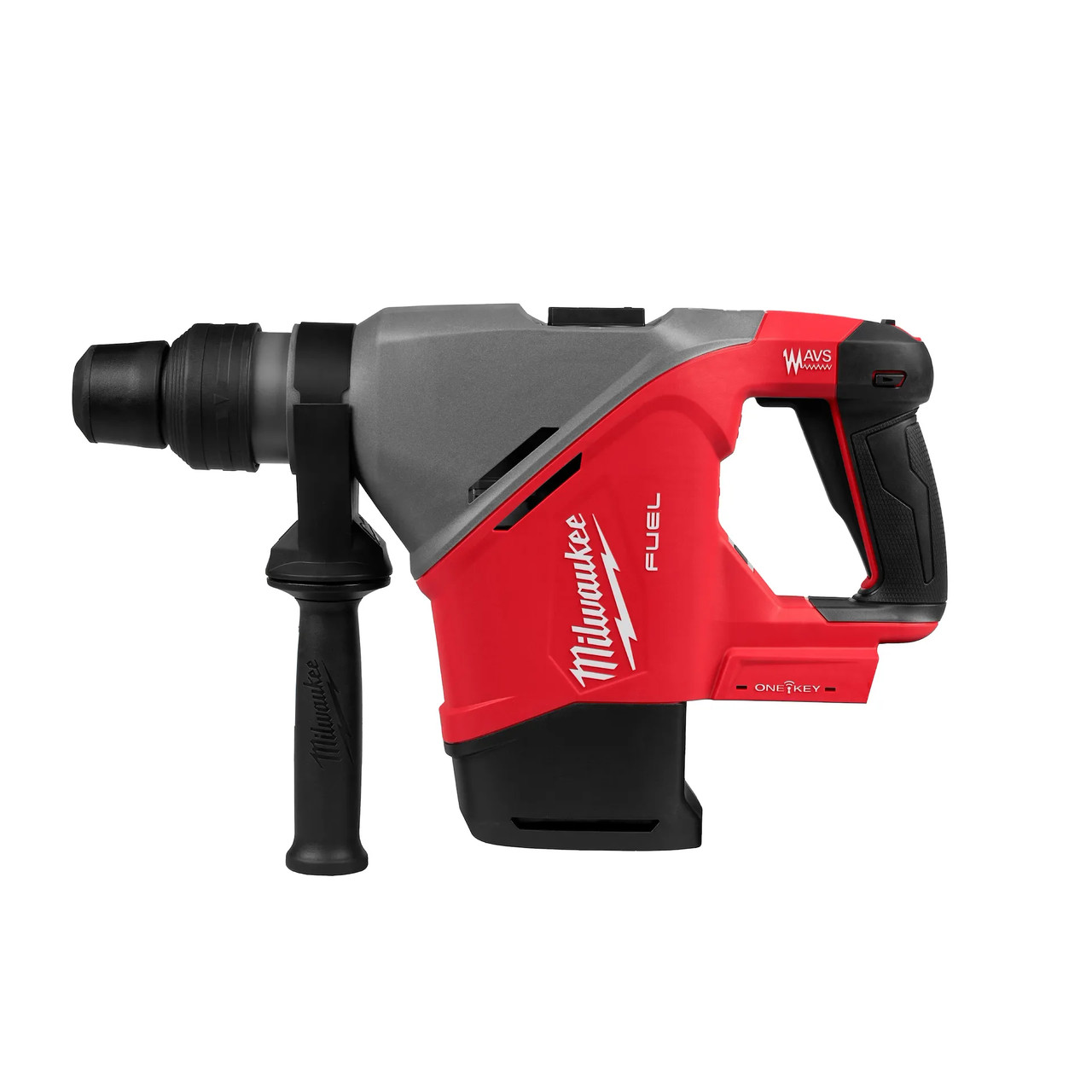

Milwaukee M18 FUEL 1-9/16 in. SDS Max Rotary Hammer with ONE-KEY
Model Number: 2917-20
The Milwaukee 2917-20 is the M18 FUEL 1-9/16 in. SDS Max Rotary Hammer with ONE-KEY, sold as a bare tool, and it represents the next advancement in cordless rotary hammers. It is built to drill faster and move more freely than a corded SDS Max hammer while giving the operator maximum control. The POWERSTATE Brushless Motor, working with REDLINK PLUS Intelligence, delivers 6 ft-lbs of impact energy for harder hitting and a faster drill rate, driving 488 RPM and 3,300 BPM. With its 1-9/16 in. SDS Max chuck and two-mode operation, rotary hammer for drilling and hammer-only for chipping, it handles heavy concrete drilling, anchor and rebar dowel setting, dry coring, and medium-duty demolition. Paired with an M18 REDLITHIUM FORGE HD12.0 battery, it drills over 24 holes of 7/8 in. by 6 in. per charge, delivering the kind of production a jobsite expects from a corded hammer without tying the operator to an outlet.
On a hammer this powerful, control and comfort matter as much as raw power. AUTOSTOP Enhanced Kickback Control senses when the bit binds up and stops the tool to prevent the dangerous over-rotation that can wrench a large hammer out of the operator's hands. The AVS Anti-Vibration System reduces the vibration transmitted to the hands, cutting fatigue over a long day of drilling and chipping, and REDLINK PLUS Intelligence continuously protects the tool from overload, overheating, and over-discharge to keep it performing and extend its service life. Together these features make a heavy SDS Max hammer safer and more comfortable to run for extended periods.
The 2917-20 also brings Milwaukee's connected features to the platform. VACLINK integrated wireless dust control lets the tool activate a compatible dust extractor or vacuum directly, so dust collection starts and stops with the trigger for cleaner, more efficient, silica-conscious work. ONE-KEY compatibility lets you track, manage, and secure the tool through the ONE-KEY app for inventory management and theft deterrence. Please note that this is the bare tool: the battery and charger are not included and are sold separately. It runs on the M18 battery system and performs best with the M18 REDLITHIUM FORGE HD12.0 battery, and a kit version with batteries is available separately under catalog number 2917-22HD. For contractors already invested in the M18 system, this hammer delivers corded-rivaling SDS Max power with full cordless portability.
Features
- Genuine Milwaukee M18 FUEL 1-9/16 in. SDS Max Rotary Hammer with ONE-KEY, bare tool
- POWERSTATE Brushless Motor for power and speed that rival corded hammers
- 6 ft-lbs of impact energy for hard-hitting, faster drilling
- 488 RPM and 3,300 BPM
- 1-9/16 in. SDS Max chuck capacity
- Two-mode operation: rotary hammer drilling and hammer-only chipping
- Drills over 24 holes of 7/8 in. by 6 in. per charge with the M18 REDLITHIUM FORGE HD12.0 battery
- Faster drilling and more portable than a corded SDS Max hammer
- AUTOSTOP Enhanced Kickback Control prevents over-rotation in a bind-up
- AVS Anti-Vibration System reduces vibration and fatigue
- REDLINK PLUS Intelligence protects from overload, overheating, and over-discharge
- VACLINK wireless dust control activates a compatible dust extractor or vacuum from the tool
- ONE-KEY compatible for tool tracking, management, and security
- Bare tool, battery and charger sold separately, runs on the M18 system
Specifications
- Manufacturer: Milwaukee Tool
- Catalog Number: 2917-20
- Tool: M18 FUEL 1-9/16 in. SDS Max Rotary Hammer with ONE-KEY
- Battery Platform: M18
- Motor: POWERSTATE Brushless
- Chuck: SDS Max, 1-9/16 in. capacity
- Impact Energy: 6 ft-lbs
- No-Load Speed: 488 RPM
- Blows Per Minute: 3,300 BPM
- Modes: Two-mode, rotary hammer and hammer-only
- Key Features: AUTOSTOP kickback control, AVS anti-vibration, REDLINK PLUS, VACLINK, ONE-KEY
- Included Battery and Charger: None, bare tool sold separately
- Part Type: Genuine Milwaukee Cordless Power Tool
Includes
- (1) Milwaukee 2917-20 M18 FUEL 1-9/16 in. SDS Max Rotary Hammer with ONE-KEY
This is a bare tool. The battery and charger are NOT included and are sold separately. For a kit that includes batteries, see catalog number 2917-22HD. Runs on the Milwaukee M18 battery system.
