Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukees website please click here:

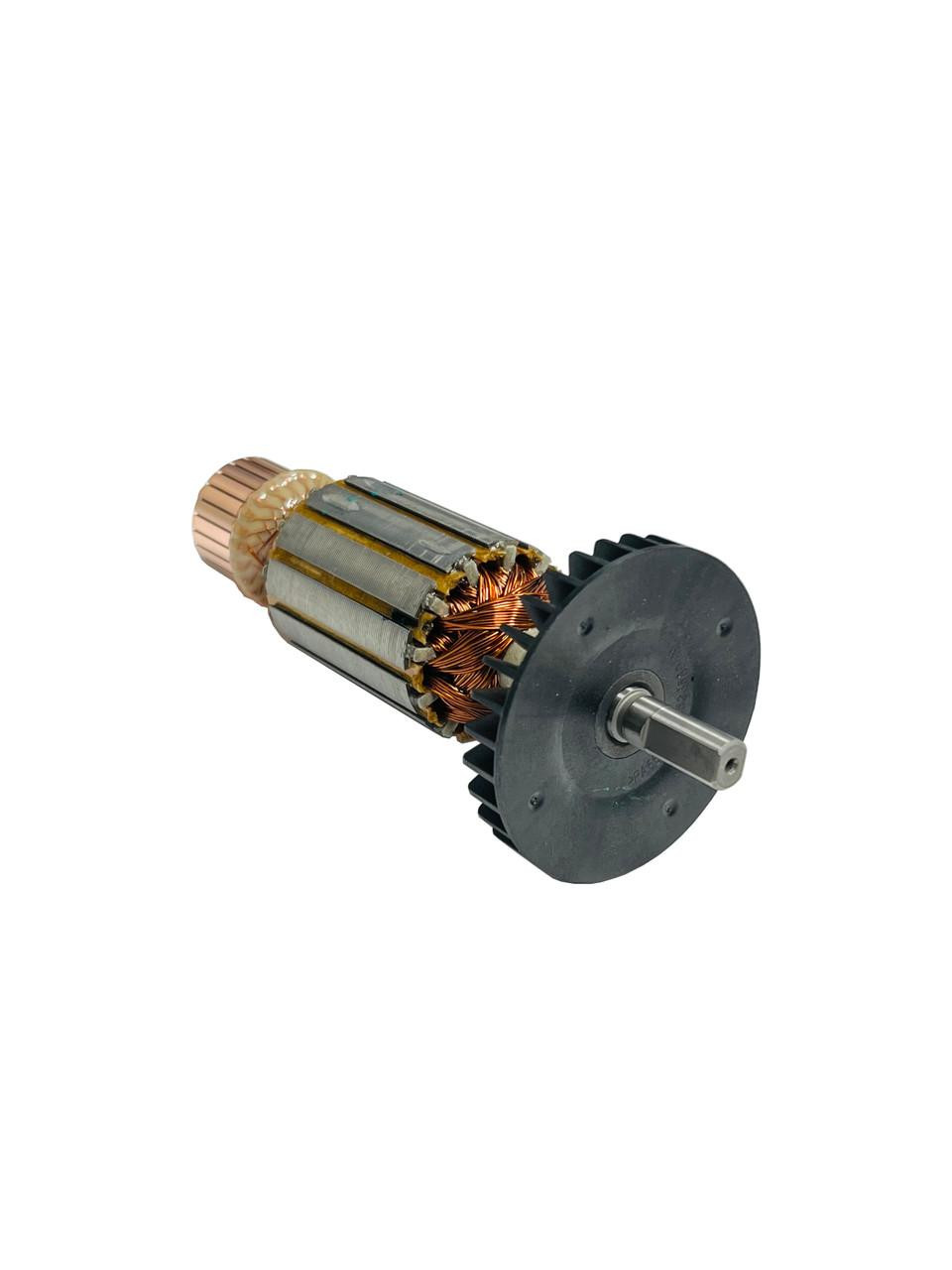

Milwaukee Service Armature — 120V
Model Number: 16-10-2275
The Milwaukee 16-10-2275 is a genuine OEM 120V Service Armature for use in compatible Milwaukee corded tools. The armature is the rotating component of a universal (brushed) motor — consisting of the laminated steel core, copper windings, commutator segments, and shaft assembled as a complete rotating unit. The 120V designation identifies this armature as wound and rated specifically for 120V AC line voltage operation. The service designation indicates it is packaged as a complete, ready-to-install replacement. An armature that has failed due to burnt windings, worn commutator segments, or physical damage results in loss of power, excessive sparking, vibration, or complete motor failure — requiring replacement to restore full motor performance.
Using a genuine Milwaukee OEM 120V service armature ensures the correct winding specification, commutator dimensions, and voltage rating for the motor it serves. Always verify your catalog number and serial number on Milwaukee's website before ordering to confirm this is the correct armature for your specific unit.
Features
- Genuine Milwaukee OEM 120V service armature for compatible Milwaukee corded tools
- Wound and rated specifically for 120V AC operation
- Complete rotating motor assembly ready for direct installation
- Restores full motor performance when original armature fails due to winding or commutator damage
- Verify catalog number and serial number on Milwaukee's website before ordering
Specifications
- Type: Service Armature (Rotor)
- Voltage Rating: 120V AC
- Material: Copper Windings on Laminated Steel Core with Commutator
- Application: Universal (Brushed) Motor Rotating Assembly
- Compatibility: Always verify part compatibility using your tool's model and serial number before ordering
Includes
- (1) Milwaukee 16-10-2275 Service Armature — 120V
