Product Description
**Milwaukee parts change not only by model# but also by serial number. Milwaukee's site lets you look up your tool's parts diagram. Enter Cat# and Select Service Parts. Also match Serial Number.

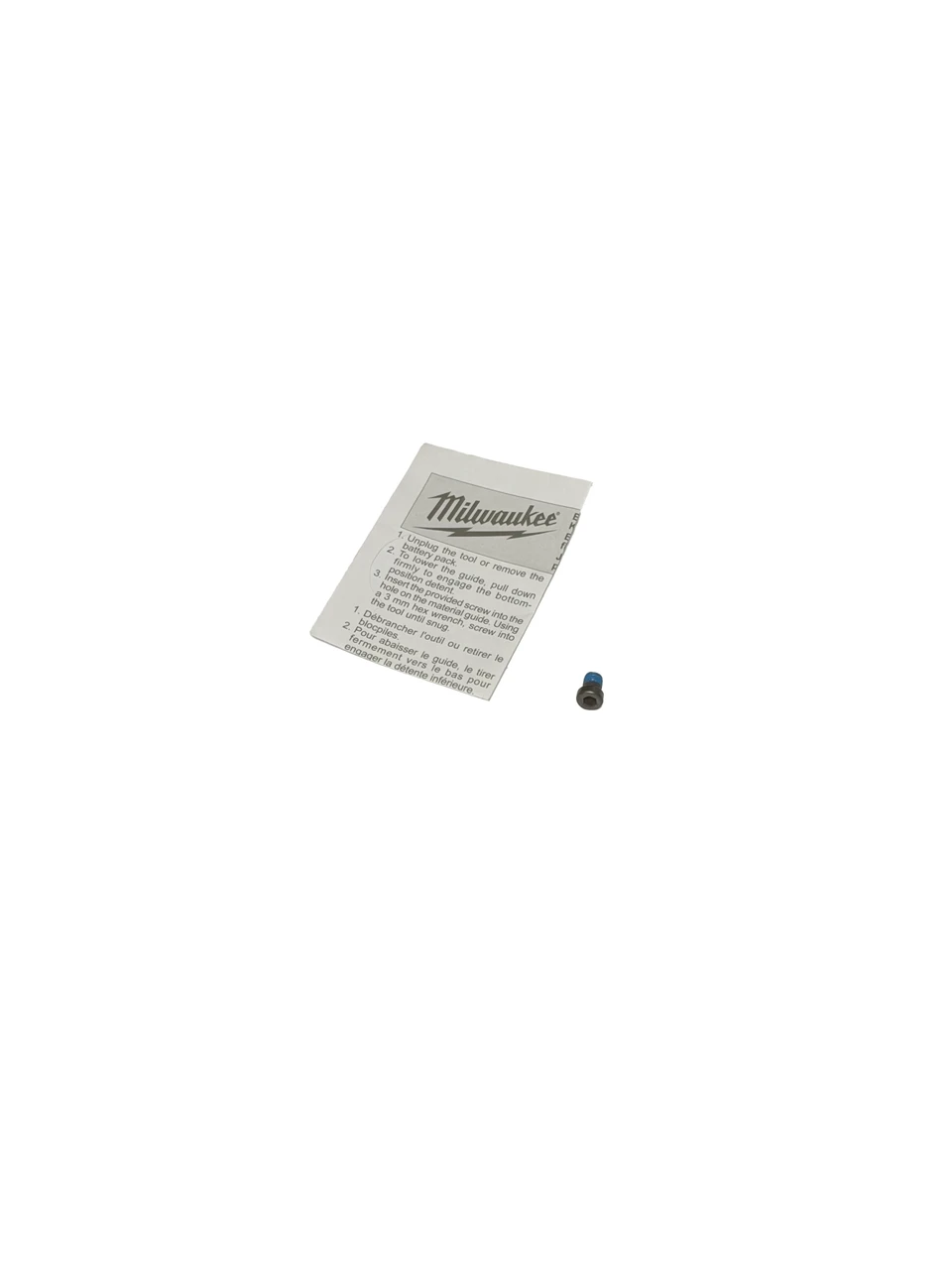

Milwaukee Bandsaw Fixed Material Guide with Screw
Model Number: 14-74-0275
The Milwaukee 14-74-0275 is a genuine OEM Bandsaw Fixed Material Guide with Screw for the 2629-20 M18 Cordless Compact Band Saw. On this saw the material guide is what the workpiece registers against as it is fed into the blade, keeping the stock positioned for a square, controlled cut. The 2629-20 uses a tool-free, adjustable 3-position material guide, and this part is the fixed guide portion of that system, supplied with its mounting screw. Because the guide takes the thrust of the material on every cut along with the knocks of jobsite handling, a bent, cracked, or missing fixed guide lets the workpiece shift or chatter, which hurts cut quality and control. Replacing it with the genuine Milwaukee OEM fixed material guide and its correct screw restores proper material registration, where an off-spec part may not locate correctly or mount securely.
This fixed material guide is identified as the Bandsaw Fixed Material Guide w/ Screw, Figure 49, on the Milwaukee service parts list for the 2629-20 M18 Cordless Compact Band Saw, serial C14D, bulletin 54-40-2603 (it also appears on the earlier serial C14C, bulletin 54-40-2602). It is important not to confuse this material guide, which supports the workpiece, with the saw's blade guide blocks, which guide the saw blade itself: those are separate parts, the front guide block assembly (42-28-0410), the rear guide block assembly (42-28-0420), and the guide block hardware kit (14-46-0465). The fixed material guide works alongside the deck assembly (28-90-0015) and the blade ejection system, which are referenced separately on the diagram. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM bandsaw fixed material guide
- For the 2629-20 M18 Cordless Compact Band Saw
- The fixed guide the workpiece registers against during the cut
- Part of the saw's tool-free 3-position adjustable material guide system
- Supplied with its mounting screw, as the description notes
- Keeps stock positioned for a square, controlled cut
- Restores proper material registration when the guide is bent or cracked
- Figure 49 on the service parts diagram (bulletin 54-40-2603, SER C14D; also 54-40-2602, SER C14C)
- Not the same as the blade guide blocks, which guide the blade rather than the material
- Works with the deck assembly and the blade ejection system
- Correct OEM fit and mounting for the material guide position
- Sold individually with screw
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 14-74-0275
- Official Description: Bandsaw Fixed Material Guide w/ Screw
- Component Type: Portable band saw fixed material guide (with mounting screw)
- Primary Fitment: Milwaukee 2629-20 M18 Cordless Compact Band Saw, SER C14C and C14D
- Also Referenced On: Verify additional applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 49 (bulletins 54-40-2603 and 54-40-2602)
- Quantity: Sold individually (1 guide with screw)
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Bandsaw Fixed Material Guide
- (1) Mounting Screw
The saw's blade guide blocks (which guide the blade, not the material) and the saw are NOT included and are sold separately; order the front or rear guide block assemblies (42-28-0410 / 42-28-0420) if that is what you need. Always verify by serial number using Milwaukee's online parts lookup before ordering.
