Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

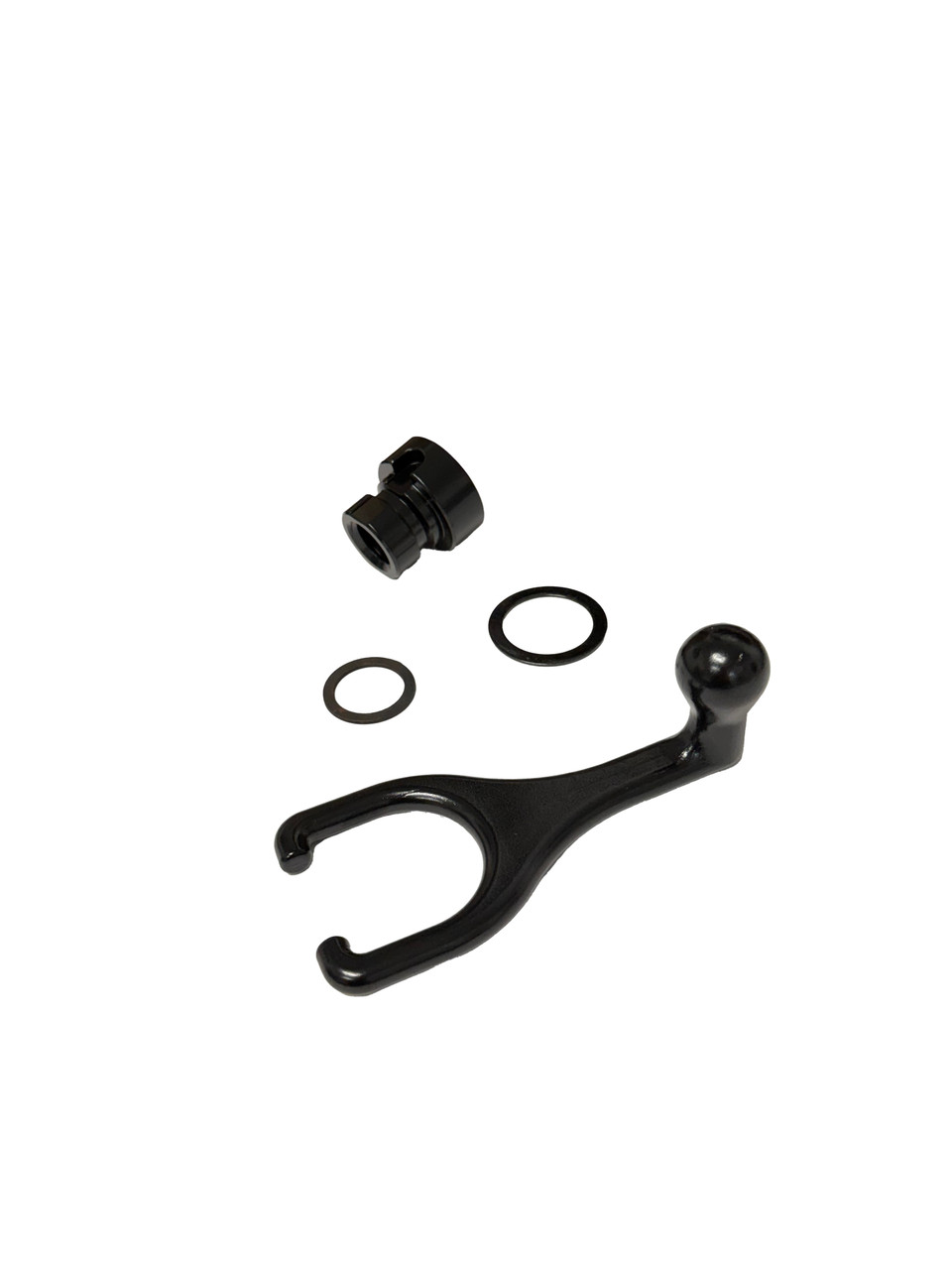

Milwaukee Vise Handle/Nut/Washer Kit
Model Number: 14-46-8624
The Milwaukee 14-46-8624 Vise Handle, Nut, and Washer Kit is a genuine OEM replacement service kit designed for the Milwaukee 48-22-8690 6 in. Leveling Tripod Chain Vise, Milwaukee's portable pipe stand built for mechanical, electrical, and plumbing tradesmen working with pipe, conduit, and other long-stock materials on jobsites. Identified as Figure 85 on Milwaukee service bulletin 54-46-8690 (September 2022), the vise handle/nut/washer kit is the most comprehensive of the three vise service kits documented on that bulletin, bundling the operator-facing vise handle, threaded nut, and associated washer components that the operator manipulates to tighten and loosen the chain vise during pipe installation, cutting, threading, and removal operations. The handle provides the mechanical leverage that converts hand torque into the clamping force that grips the workpiece, the nut delivers the threaded engagement that translates handle rotation into linear clamping motion, and the washers maintain correct load distribution and prevent component galling under repeated cycling.
A worn, bent, stripped, or seized vise handle/nut/washer assembly compromises the operator's ability to clamp pipes securely and reliably. Symptoms include a handle that spins without engaging the clamping mechanism (stripped nut threads), a handle that binds or seizes during operation (worn or galled washer/nut interface), or visible damage to the handle itself from drops or impact. Replacing the assembly with this OEM service kit restores correct handle action, full clamping force delivery, and reliable pipe retention. The 14-46-8624 is the most comprehensive of the three vise service kits on bulletin 54-46-8690, covering the complete handle assembly plus the nut and washer components. For service involving only the nut and washer without the handle, see the Milwaukee 14-46-8623 Vise Nut and Washer Kit (Fig 84). For service of the chain vise jaw and gripping mechanism itself, see the Milwaukee 14-46-8622 Vise Assembly Kit (Fig 83). Milwaukee specifies MOBIL VELOCITE No. 10 oil for lubrication of the threaded rod and chain components during service. Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee 48-22-8690 service parts diagram before ordering. Verify by serial number using Milwaukee's online parts lookup before ordering to confirm correct fitment.
Features
- Genuine Milwaukee OEM replacement service kit, direct factory part for the 14-46-8624 reference
- Designed for the Milwaukee 48-22-8690 6 in. Leveling Tripod Chain Vise
- Most comprehensive of the three vise service kits on bulletin 54-46-8690
- Bundles the operator-facing vise handle, threaded nut, and associated washer components
- Documented as Figure 85 on Milwaukee service bulletin 54-46-8690 (September 2022)
- Handle provides mechanical leverage for converting hand torque into clamping force
- Threaded nut translates handle rotation into linear clamping motion
- Washers maintain correct load distribution and prevent component galling under repeated cycling
- Companion service kits on the same bulletin: 14-46-8622 Vise Assembly Kit (Fig 83) and 14-46-8623 Vise Nut and Washer Kit (Fig 84), both sold separately
- Lubrication: MOBIL VELOCITE No. 10 oil specified for threaded rod and chain components
- Manufactured to Milwaukee factory tolerances and material specifications
- Direct-fit replacement, no modification required for installation
- Restores correct handle action and full clamping force delivery
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 14-46-8624
- Official Description: Vise Handle, Nut, and Washers Kit
- Component Type: Chain Vise Operator Handle Assembly Service Kit
- Kit Contents: Vise handle, threaded nut, and washer components
- Primary Fitment: Milwaukee 48-22-8690 6 in. Leveling Tripod Chain Vise (Pipe Stand)
- Service Bulletin Reference: 54-46-8690 (September 2022), Figure 85
- Companion Service Kits: Milwaukee 14-46-8622 Vise Assembly Kit (Fig 83), Milwaukee 14-46-8623 Vise Nut and Washer Kit (Fig 84) - both sold separately
- Required Lubricant: MOBIL VELOCITE No. 10 (sold separately)
- Tool Pipe Capacity: 6 in. (152 mm)
- Quantity: Sold as a complete service kit, 1 per order
- Part Type: OEM Service Replacement Kit
Includes
- (1) Milwaukee 14-46-8624 Vise Handle/Nut/Washer Kit (handle, nut, and washer components)
- Note: For service involving only the nut and washer without the handle, see the Milwaukee 14-46-8623 Vise Nut and Washer Kit (Fig 84), sold separately. For service of the chain vise jaw and gripping mechanism itself, see the Milwaukee 14-46-8622 Vise Assembly Kit (Fig 83), sold separately
- Note: Verify your tool's catalog number (48-22-8690) and serial number against the official Milwaukee parts diagram before ordering
