Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

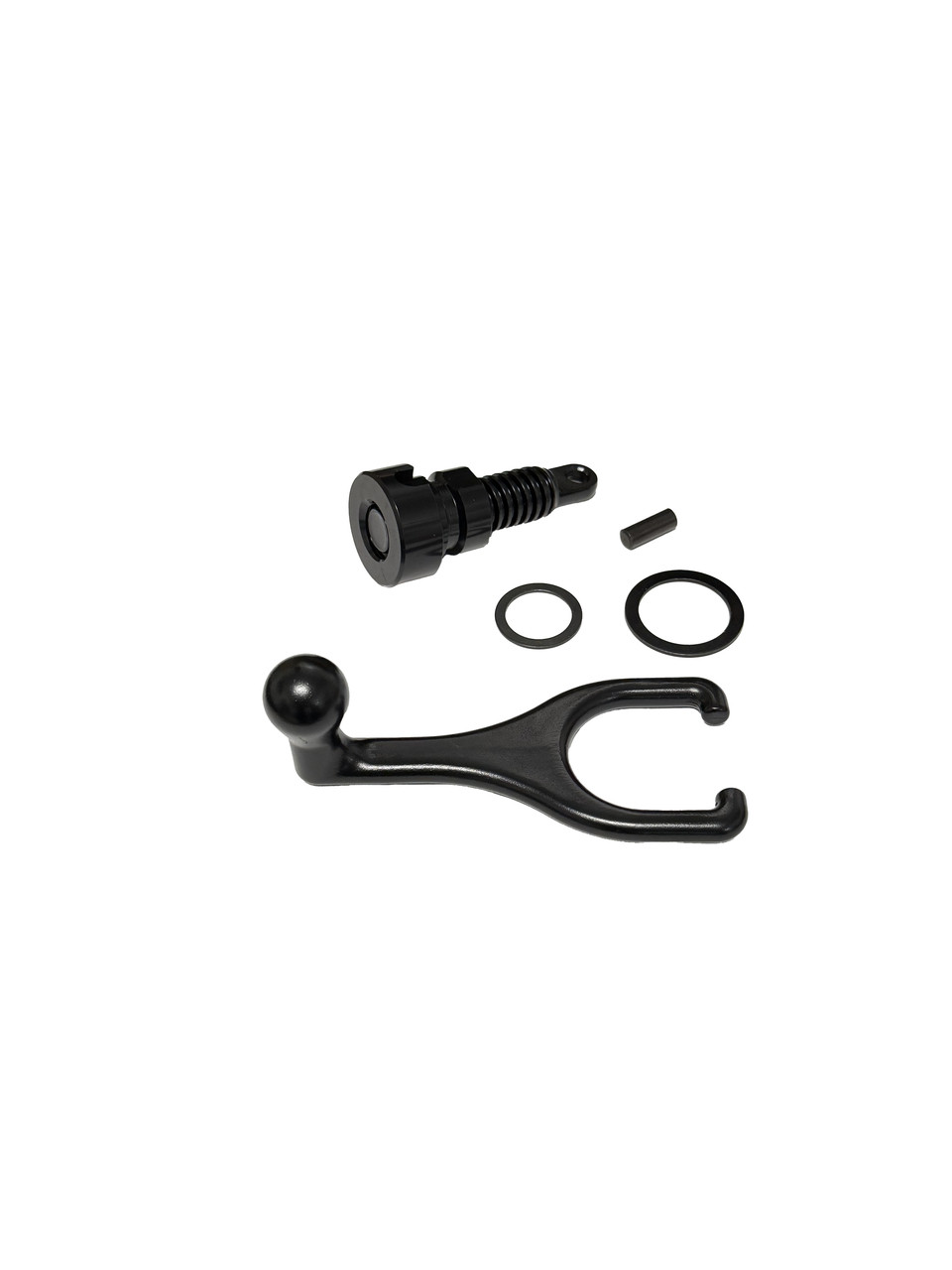

Milwaukee Vise Assembly Kit
Model Number: 14-46-8622
The Milwaukee 14-46-8622 Vise Assembly Kit is a genuine OEM replacement service kit designed for the Milwaukee 48-22-8690 6 in. Leveling Tripod Chain Vise, Milwaukee's portable pipe stand built for mechanical, electrical, and plumbing tradesmen working with pipe, conduit, and other long-stock materials on jobsites where setting up a stationary pipe vise is impractical. Identified as Figure 83 on Milwaukee service bulletin 54-46-8690 (September 2022), the vise assembly kit bundles the chain vise jaw and gripping mechanism components that physically grip and hold pipes during cutting, threading, deburring, and other pipe fabrication operations. The chain vise design is the standard for portable pipe stands because it accommodates pipe diameters from very small up to the stand's full 6 in. capacity using a single mechanism, where a fixed-jaw vise would require multiple jaw sets to cover the same range.
A worn, broken, or damaged chain vise mechanism on a pipe stand is a serious workflow problem since the entire purpose of the tripod stand is to hold a workpiece securely during cutting and threading operations - a slipping or failed vise means the pipe shifts during the cut, which produces miter-square cuts, off-axis threads, and in severe cases injury to the operator from the workpiece swinging unexpectedly under cutting load. Replacing the assembly with this OEM service kit restores correct gripping force and reliable pipe retention. The 14-46-8622 works alongside the companion Milwaukee 14-46-8623 Vise Nut and Washer Kit (Fig 84) and Milwaukee 14-46-8624 Vise Handle/Nut/Washer Kit (Fig 85) on the same bulletin, both sold separately, which cover the threaded rod, nut, washer, and handle components of the vise mechanism. Milwaukee specifies MOBIL VELOCITE No. 10 oil for lubrication of the chain and threaded rod components during service. Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee 48-22-8690 service parts diagram before ordering. Verify by serial number using Milwaukee's online parts lookup before ordering to confirm correct fitment.
Features
- Genuine Milwaukee OEM replacement service kit, direct factory part for the 14-46-8622 reference
- Designed for the Milwaukee 48-22-8690 6 in. Leveling Tripod Chain Vise
- Chain vise jaw and gripping mechanism components for the portable pipe stand
- Documented as Figure 83 on Milwaukee service bulletin 54-46-8690 (September 2022)
- Restores correct pipe gripping force and reliable retention during cutting and threading operations
- Accommodates pipe diameters across the full 6 in. capacity of the 48-22-8690 stand
- Critical safety component, prevents pipe shifting and workpiece movement during operations
- Works with the companion Milwaukee 14-46-8623 Vise Nut and Washer Kit and 14-46-8624 Vise Handle/Nut/Washer Kit (both sold separately)
- Lubrication: MOBIL VELOCITE No. 10 oil specified for chain and threaded rod components
- Manufactured to Milwaukee factory tolerances and material specifications
- Direct-fit replacement, no modification required for installation
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 14-46-8622
- Official Description: Vise Assembly Kit
- Component Type: Chain Vise Jaw and Gripping Mechanism Service Kit
- Primary Fitment: Milwaukee 48-22-8690 6 in. Leveling Tripod Chain Vise (Pipe Stand)
- Service Bulletin Reference: 54-46-8690 (September 2022), Figure 83
- Companion Service Kits: Milwaukee 14-46-8623 Vise Nut and Washer Kit, Milwaukee 14-46-8624 Vise Handle/Nut/Washer Kit (both sold separately)
- Required Lubricant: MOBIL VELOCITE No. 10 (sold separately)
- Tool Pipe Capacity: 6 in. (152 mm)
- Quantity: Sold as a complete service kit, 1 per order
- Part Type: OEM Service Replacement Kit
Includes
- (1) Milwaukee 14-46-8622 Vise Assembly Kit
- Note: Companion service kits (Milwaukee 14-46-8623 Vise Nut and Washer Kit, Milwaukee 14-46-8624 Vise Handle/Nut/Washer Kit) are NOT included and sold separately. Recommended for inspection at the same time as the vise assembly kit during a full vise mechanism service
- Note: Verify your tool's catalog number (48-22-8690) and serial number against the official Milwaukee parts diagram before ordering
