Product Description
**Milwaukee parts change not only by model# but also by serial number. Milwaukee's site lets you look up your tool's parts diagram. Enter Cat# and Select Service Parts. Also match Serial Number.

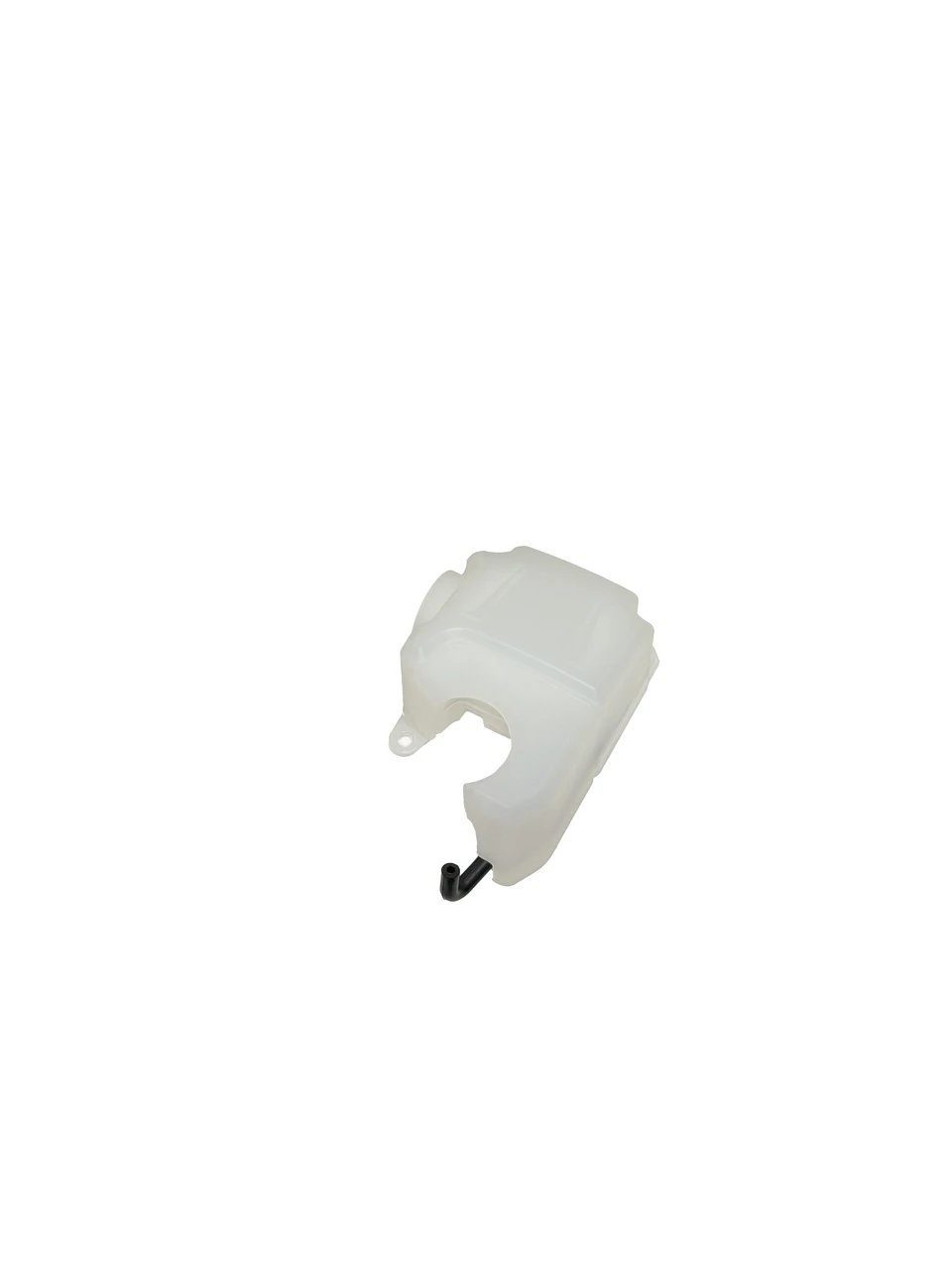

Milwaukee Oil Tank Assembly
Model Number: 14-46-2400
The Milwaukee 14-46-2400 is a genuine OEM Oil Tank Assembly for the 49-16-2721 M18 FUEL QUIK-LOK 3 ft. Attachment Extension. This part is the chain-oil reservoir assembly in the QUIK-LOK pole saw system: it holds the bar and chain oil and, through its outlet tube, delivers oil to keep the chain lubricated during cutting, which is what prevents the chain and bar from overheating and wearing prematurely. Because it carries oil and connects into the oil path, a cracked tank, a failed seal, or a damaged outlet tube leads to leaks, loss of chain lubrication, or no oil reaching the bar, which quickly damages the chain and bar. This current assembly replaces the obsolete oil tank 45-66-0013 and now comes with the outlet tube built in, consolidating what used to be separate parts into one service assembly. Fitting the genuine Milwaukee OEM oil tank assembly restores reliable chain oiling with the correct tank, seals, and tube, where an off-spec part may leak or fail to feed oil.
This oil tank assembly is the current replacement for the obsolete oil tank 45-66-0013, and it now includes the outlet tube that was previously a separate service part, so order 14-46-2400 rather than the discontinued number. It is cataloged for the 49-16-2721, which is Milwaukee's QUIK-LOK 3 ft. Attachment Extension, the split-shaft extension and not a pole saw itself; the chain-oil system it serves feeds the QUIK-LOK 10 in. Pole Saw Attachment (49-16-2720) when the two are run together on an M18 FUEL QUIK-LOK power head. It works with the oil system's inlet tube (45-76-0011) and the pole saw's bar and chain, which are separate items. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM oil tank assembly
- For the 49-16-2721 M18 FUEL QUIK-LOK 3 ft. Attachment Extension
- The chain-oil reservoir assembly in the QUIK-LOK pole saw system
- Holds the bar and chain oil and feeds it through the outlet tube
- Keeps the chain lubricated to prevent chain and bar wear and overheating
- Replaces the obsolete oil tank 45-66-0013
- Now includes the outlet tube, which used to be a separate part
- Serves the QUIK-LOK 10 in. Pole Saw Attachment (49-16-2720) when run on the extension
- Restores reliable chain oiling with the correct tank, seals, and tube
- Replace if the tank is cracked or leaking, or the outlet tube is damaged
- Works with the oil system's inlet tube (45-76-0011), sold separately
- Sold as an assembly
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 14-46-2400
- Official Description: Oil Tank Assembly
- Component Type: QUIK-LOK pole saw chain-oil tank assembly with outlet tube
- Primary Fitment: Milwaukee 49-16-2721 M18 FUEL QUIK-LOK 3 ft. Attachment Extension
- Also Referenced On: Serves the QUIK-LOK 10 in. Pole Saw Attachment (49-16-2720); replaces obsolete 45-66-0013; verify by serial number using Milwaukee's online parts lookup
- Parts Diagram Position: Verify figure on the current Milwaukee service parts diagram (the obsolete 45-66-0013 was Figure 12 on bulletin 54-49-2815)
- Quantity: Sold individually (1 assembly: oil tank with outlet tube)
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Oil Tank
- (1) Outlet Tube
The inlet tube (45-76-0011), the bar and chain, and the attachment are NOT included and are sold separately. This assembly replaces the obsolete oil tank 45-66-0013 and now includes the outlet tube. Always verify by serial number using Milwaukee's online parts lookup before ordering.
