Product Description

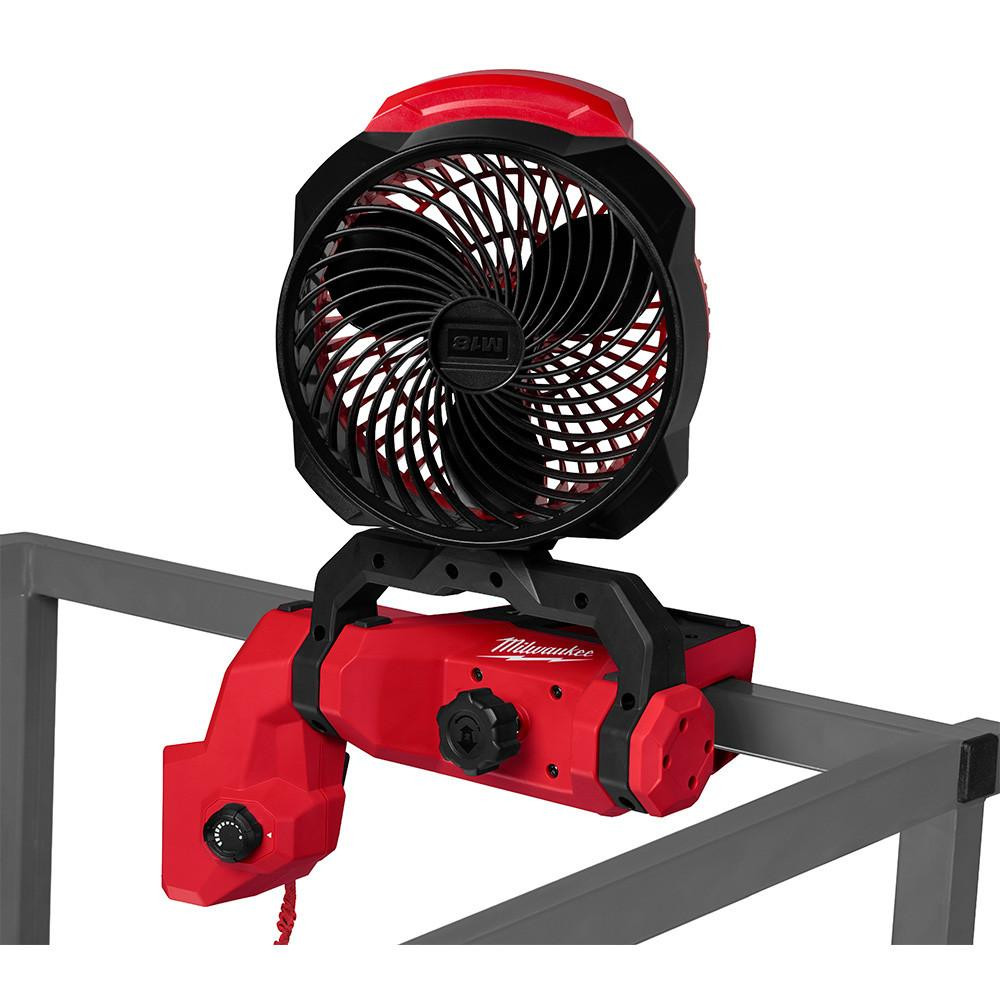

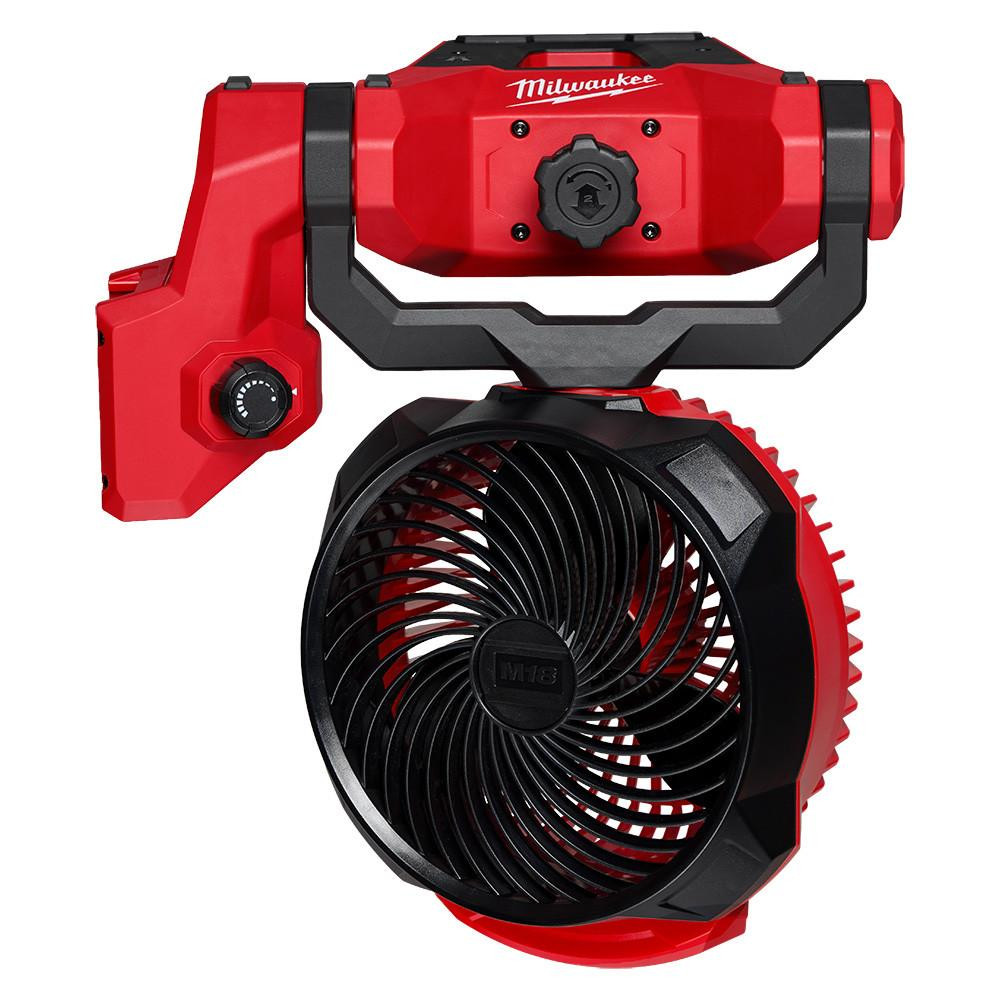

Milwaukee M18 Brushless Scissor Lift Fan (Bare Tool)
Model Number: 0817-20
The Milwaukee 0817-20 M18 Brushless Scissor Lift Fan is the industry's first cordless fan engineered specifically for dedicated scissor lift cooling and mounting, built for commercial electricians, mechanical contractors, sheet metal workers, ceiling installers, fire-protection technicians, and any tradesperson who spends long hours working overhead from a scissor lift or aerial work platform in hot indoor environments like warehouses, distribution centers, manufacturing facilities, and large commercial buildings under construction. Until this product, scissor lift operators had to choose between dragging a corded shop fan up onto the lift with extension cords (a serious trip hazard on a small platform), using a general-purpose battery fan that wasn't designed to clamp to lift rails, or simply working without personal cooling and accepting the heat fatigue, dehydration, and reduced productivity that comes with hot overhead work. The 0817-20 solves this by integrating a powerful 7 in. brushless fan with a dedicated lift-rail clamping system and a built-in tether point for OSHA-compliant working-at-heights tool retention.
The 2 in. quick-adjust secure clamp is the engineering at the heart of what makes this fan work on a scissor lift. The clamp is compatible with both square and round rail profiles, which matters because different scissor lift manufacturers use different rail geometries and the operator cannot count on having a specific rail type on every jobsite lift. The clamp installs and removes in seconds without tools, so the fan moves with the operator between lifts and between platform positions throughout the workday. The integrated tether point on the fan body works with the included Milwaukee 48-22-8810 10 lb Locking Tool Lanyard to retain the fan against a dropped-object incident, which is a critical safety requirement on most commercial jobsites with OSHA-compliant working-at-heights policies and dropped-object prevention programs. The fan is built to survive the abuse of scissor lift work with an impact-resistant housing, water and dust ingress protection, and a reinforced design rated for drops and impacts that would destroy a conventional battery fan.
The brushless motor delivers up to 19.5 MPH of air speed and 750 CFM of airflow, which is enough cooling capacity to keep the operator productive in even very warm indoor environments. The 7 in. blade and brushless drive deliver over 3.5 hours of runtime on high and up to 8 hours at 75 percent fan speed when paired with a single M18 REDLITHIUM XC5.0 battery, easily covering a full work shift without battery swaps in most applications. The fan features a variable speed dial for fine-grained airflow control, up to 350 degree horizontal fan head rotation, and up to 210 degree vertical tilt, giving the operator the ability to position air exactly where it's needed regardless of the operator's body position on the lift. The 0817-20 is the bare tool configuration, which is the right choice for contractors already invested in the M18 battery ecosystem; the M18 REDLITHIUM battery and charger are sold separately. The 0817-20 is fully compatible with the M18 battery platform (200-plus tools) and is backed by Milwaukee's 1-year limited warranty.
Features
- Industry's first cordless fan engineered for dedicated scissor lift cooling and mounting
- 2 in. quick-adjust secure clamp compatible with both square and round lift rails
- Tool-free clamp installation and removal in seconds
- Built-in tether point for OSHA-compliant working-at-heights tool retention
- 10 lb Locking Tool Lanyard (Milwaukee 48-22-8810) included
- Powerful brushless motor delivers up to 19.5 MPH air speed
- Up to 750 CFM of airflow for personal cooling on commercial jobsites
- 7 in. blade engineered for high airflow with low motor draw
- Over 3.5 hours of runtime on high with a single M18 REDLITHIUM XC5.0 battery
- Up to 8 hours of runtime at 75% speed with a single M18 REDLITHIUM XC5.0 battery
- Variable speed dial for fine-grained airflow control
- Up to 350 degree horizontal fan head rotation
- Up to 210 degree vertical fan head tilt
- Impact-resistant reinforced housing rated for drops and jobsite impacts
- Water and dust ingress protection for durability in adverse conditions
- Lightweight 6.1 lb design for easy portability between lifts and work positions
- Full compatibility with the M18 battery platform (200+ tools)
- 1 Year Limited Warranty backed by Milwaukee Tool
Specifications
- Manufacturer: Milwaukee Tool
- Catalog Number: 0817-20
- Configuration: Bare Tool (battery and charger sold separately)
- Tool Type: M18 Brushless Cordless Scissor Lift Fan
- Motor: Brushless
- Blade Size: 7 in.
- Maximum Air Speed: 19.5 MPH
- Maximum Airflow: 750 CFM
- Mounting System: 2 in. Quick-Adjust Secure Clamp
- Rail Compatibility: Square and round rails
- Horizontal Rotation: Up to 350 degrees
- Vertical Tilt: Up to 210 degrees
- Speed Control: Variable speed dial
- Runtime on High (XC5.0 battery): Over 3.5 hours
- Runtime at 75% Speed (XC5.0 battery): Up to 8 hours
- Battery System: M18 REDLITHIUM (battery sold separately)
- ONE-KEY Enabled: No
- Dimensions: 14.25 in. H x 12.5 in. L x 8.5 in. W
- Weight: 6.1 lb
- Color: Red and black
- Protection: Impact-resistant reinforced design with water and dust protection
- Warranty: 1 Year Limited
Includes
- (1) Milwaukee 0817-20 M18 Brushless Scissor Lift Fan
- (1) Milwaukee 48-22-8810 10 lb Locking Tool Lanyard
- Note: M18 REDLITHIUM battery and charger are NOT included with this bare tool configuration and sold separately
- Note: For longest runtime, pair with the M18 REDLITHIUM XC5.0 battery for over 3.5 hours on high and up to 8 hours at 75% speed
