Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukees website please click here:

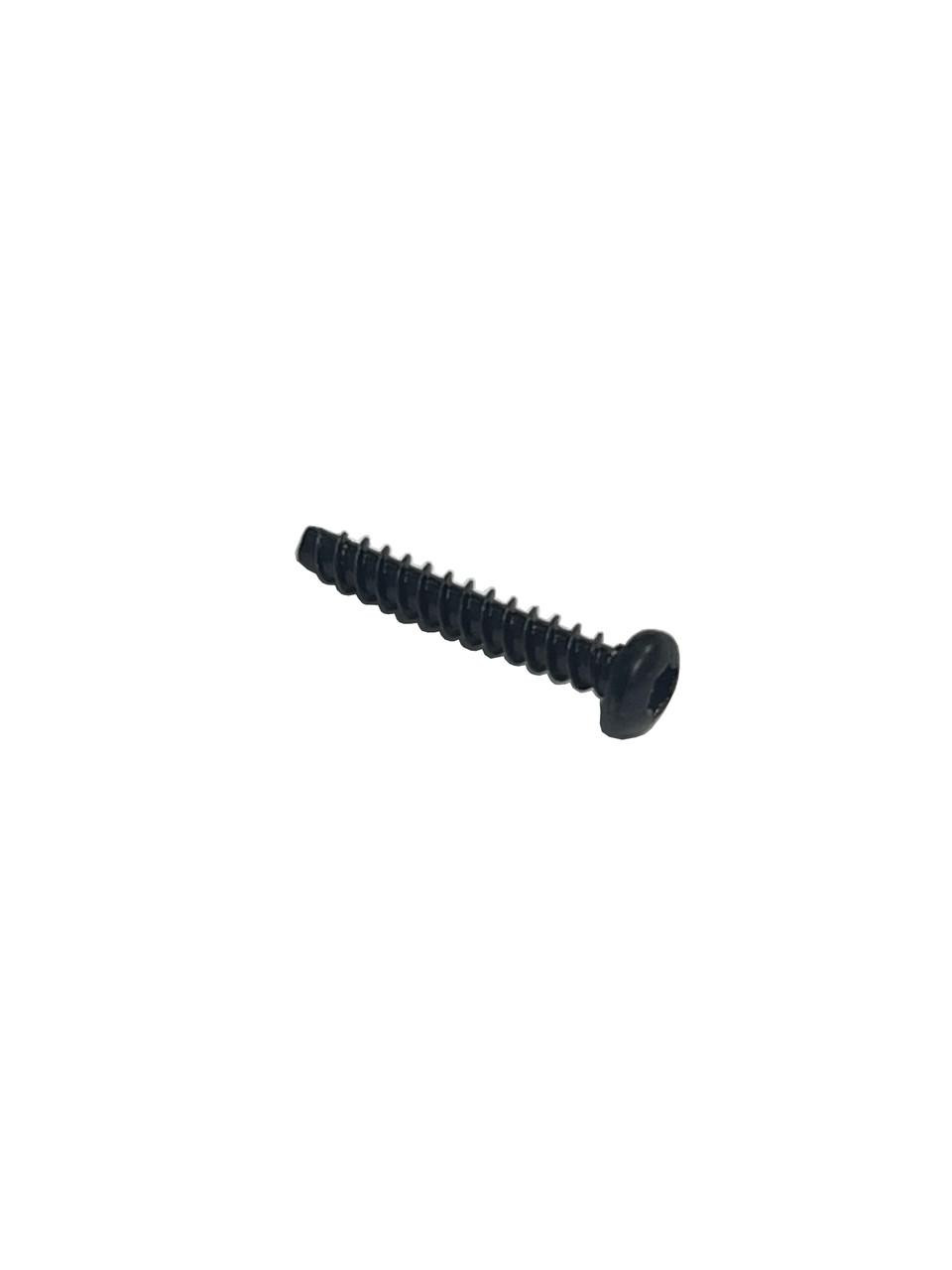

Milwaukee #4-20 x 3/4 in. Plastite T10 Pan Head Screw
Model Number: 06-82-7336
The Milwaukee 06-82-7336 is a genuine OEM #4-20 x 3/4 in. Pan Head Plastite T-10 Torx Screw for use in compatible Milwaukee tools. This part also replaces the obsolete part number 05-88-0675. "Plastite" is a thread-forming screw specifically engineered to displace and form its own mating threads as it is driven into a pre-drilled or molded pilot hole in plastic — eliminating the need for a pre-tapped thread in the receiving plastic boss. The thread-forming process creates a precise, interference-fit thread that provides strong resistance to loosening under vibration and dynamic operating loads common in power tool housings. The #4-20 designation identifies this as a #4 diameter screw with 20 threads per inch — one of the smaller imperial screw sizes used in tool assemblies, suited for securing compact internal components, light covers, and small bracket assemblies in tool housings. The T-10 Torx drive delivers superior torque transfer and reduced cam-out for precise, controlled installation. The pan head profile provides a low-profile, slightly rounded head with a flat bearing surface above the fastened surface. The 3/4 in. length provides a medium-depth fastener connection through standard housing panel thicknesses. A stripped, broken, or missing screw requires replacement to restore proper housing assembly integrity and safe tool operation.
Using a genuine Milwaukee OEM Plastite screw ensures the correct #4-20 thread-forming profile, 3/4 in. length, T-10 Torx drive, and pan head geometry for the plastic housing interface it serves. Non-OEM screws may not match the original Plastite thread profile, leading to improper thread formation in the plastic boss or insufficient clamping force at the housing joint. Always verify your catalog number and serial number on Milwaukee's website before ordering to confirm this is the correct screw for your specific unit.
Features
- Genuine Milwaukee OEM #4-20 x 3/4 in. Plastite T-10 pan head screw for compatible Milwaukee tools
- Replaces obsolete Milwaukee part number 05-88-0675
- Plastite thread-forming design cuts its own threads in plastic housing bosses — no pre-tapping required
- Thread-forming interference fit provides strong resistance to loosening under vibration
- T-10 Torx drive for superior torque transfer and reduced cam-out during installation
- Verify catalog number and serial number on Milwaukee's website before ordering
Specifications
- Thread Size: #4-20
- Length: 3/4 in.
- Drive: T-10 Torx
- Head Style: Pan Head
- Type: Plastite Thread-Forming Screw
- Replaces: 05-88-0675
Includes
- (1) Milwaukee 06-82-7336 #4-20 x 3/4 in. Plastite T-10 Pan Head Screw
