Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

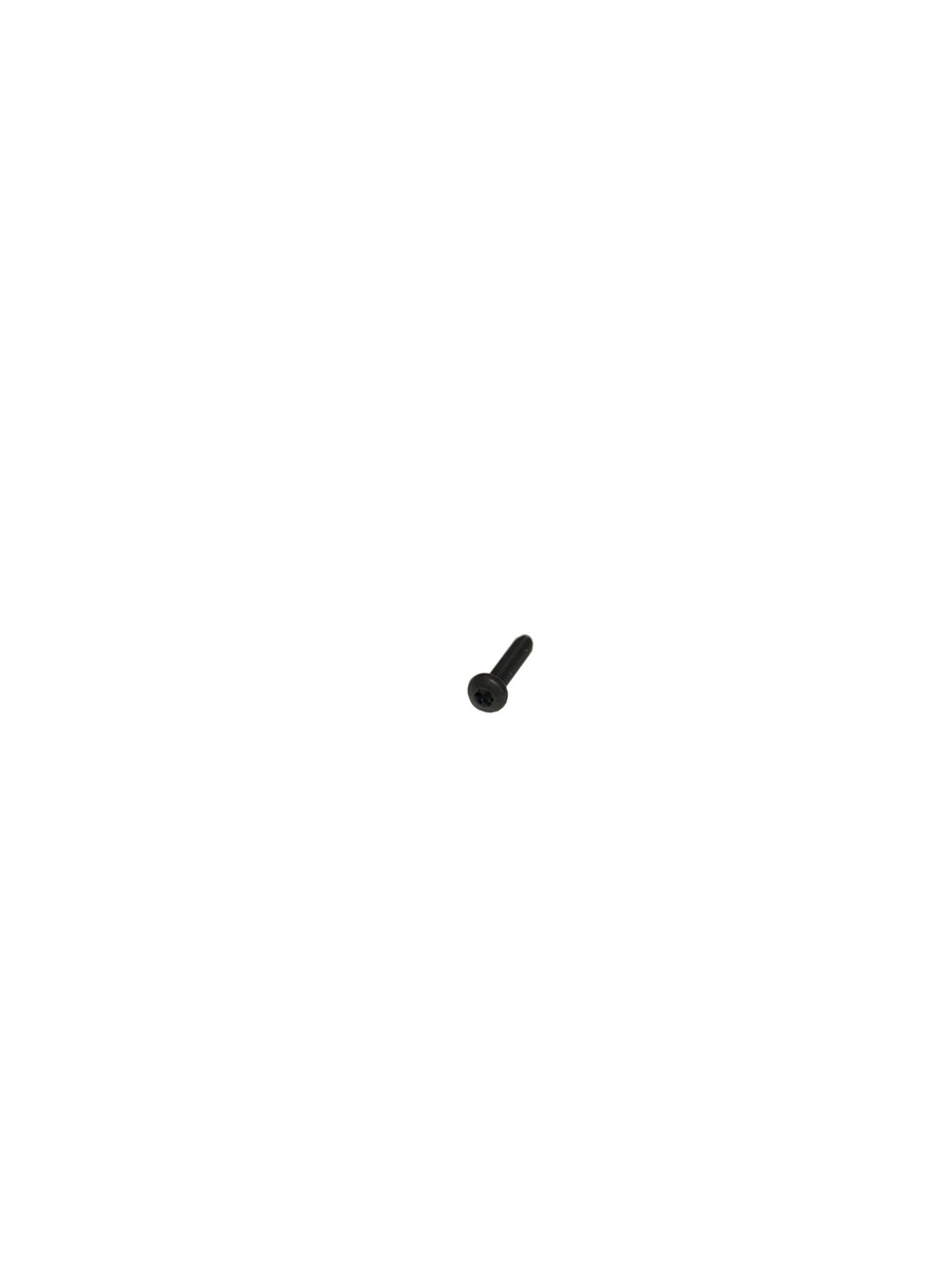

Milwaukee 8-32 x 3/4 in. Pan Head Torx Taptite Screw
Model Number: 06-82-5346
The Milwaukee 06-82-5346 is a genuine OEM 8-32 x 3/4 in. Pan Head Torx TAPTITE Screw, a threaded fastener used to assemble and secure components within a range of Milwaukee tools. The screw has an 8-32 thread, a 3/4 in. length, a pan head, and a Torx drive recess that is driven with a Torx bit. TAPTITE refers to a thread-forming, or thread-rolling, screw designed for metal: rather than cutting threads like a machine screw or requiring a pre-tapped hole, its special thread profile rolls and forms mating threads in a metal boss by displacing material, which creates a strong, tight, vibration-resistant joint. This is the metal counterpart to a Plastite screw, which forms threads in plastic, so a TAPTITE screw is used where the tool threads into a metal component such as a gearcase or die-cast housing. The pan head provides a broad, flat bearing surface that distributes clamping load evenly, and the Torx drive resists cam-out and allows higher installation torque without stripping the head, which is what a production assembly and field-service fastener both need. Choosing the genuine Milwaukee OEM screw matters because the thread form, diameter, and length are matched to the metal boss it forms threads into; a wrong or damaged screw can fail to re-form into the existing threads, strip the boss, or fail to hold under the vibration of a running tool.
Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, and because this TAPTITE screw is standard hardware that appears on many different Milwaukee tools in varying quantities and locations, always verify your tool's serial number against the official Milwaukee service parts diagram before ordering to confirm this exact screw size and the quantity your tool uses at each position. Do not assume screw sizes by appearance, since a tool housing often uses several screws of the same head style in different lengths, drives, or thread-forming types, and the diagram is what identifies the correct part number at each location. Any screw that has been stripped, cross-threaded, or reused until its thread form is worn should be replaced rather than reinstalled, since a worn TAPTITE screw will not re-form cleanly into the metal boss. When reassembling, drive the screw into the existing formed threads and seat it firmly without overtightening.
Features
- Genuine Milwaukee OEM service part, not an aftermarket substitute
- 8-32 x 3/4 in. pan head Torx TAPTITE screw
- 8-32 thread, 3/4 in. length, pan head, Torx drive
- TAPTITE thread-forming design rolls its own threads in a metal boss
- Creates a strong, tight, vibration-resistant joint in metal
- The metal counterpart to a Plastite screw, which forms threads in plastic
- Pan head distributes clamping load across a broad bearing surface
- Torx drive resists cam-out and allows higher torque without stripping
- Standard assembly hardware used across many Milwaukee tools
- Direct replacement for a stripped, lost, or damaged screw
- Manufactured to Milwaukee specification for correct thread form and clamp load
- Verify fitment, quantity, and drive by tool model and serial number
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 06-82-5346
- Official Description: 8-32 x 3/4 PN SL TAPT TORX Screw
- Component Type: Thread-forming (TAPTITE) machine screw for metal
- Thread Size: 8-32
- Length: 3/4 in.
- Head Style: Pan head
- Drive: Torx
- Thread Type: TAPTITE thread-forming for metal
- Primary Fitment: Standard hardware used across many Milwaukee tools - verify by model and serial number
- Quantity: Sold individually, quantity per tool varies by model
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Milwaukee 06-82-5346 8-32 x 3/4 in. Pan Head Torx Taptite Screw
This screw is sold individually. The quantity your tool uses varies by model, and most housings use more than one, so verify the required quantity, length, and drive on your tool's parts diagram and order accordingly. Always verify by serial number using Milwaukee's online parts lookup before ordering.
