Product Description
**Milwaukee parts change not only by model# but also by serial number. To look up your tools parts break down on Milwaukee's website please click here:

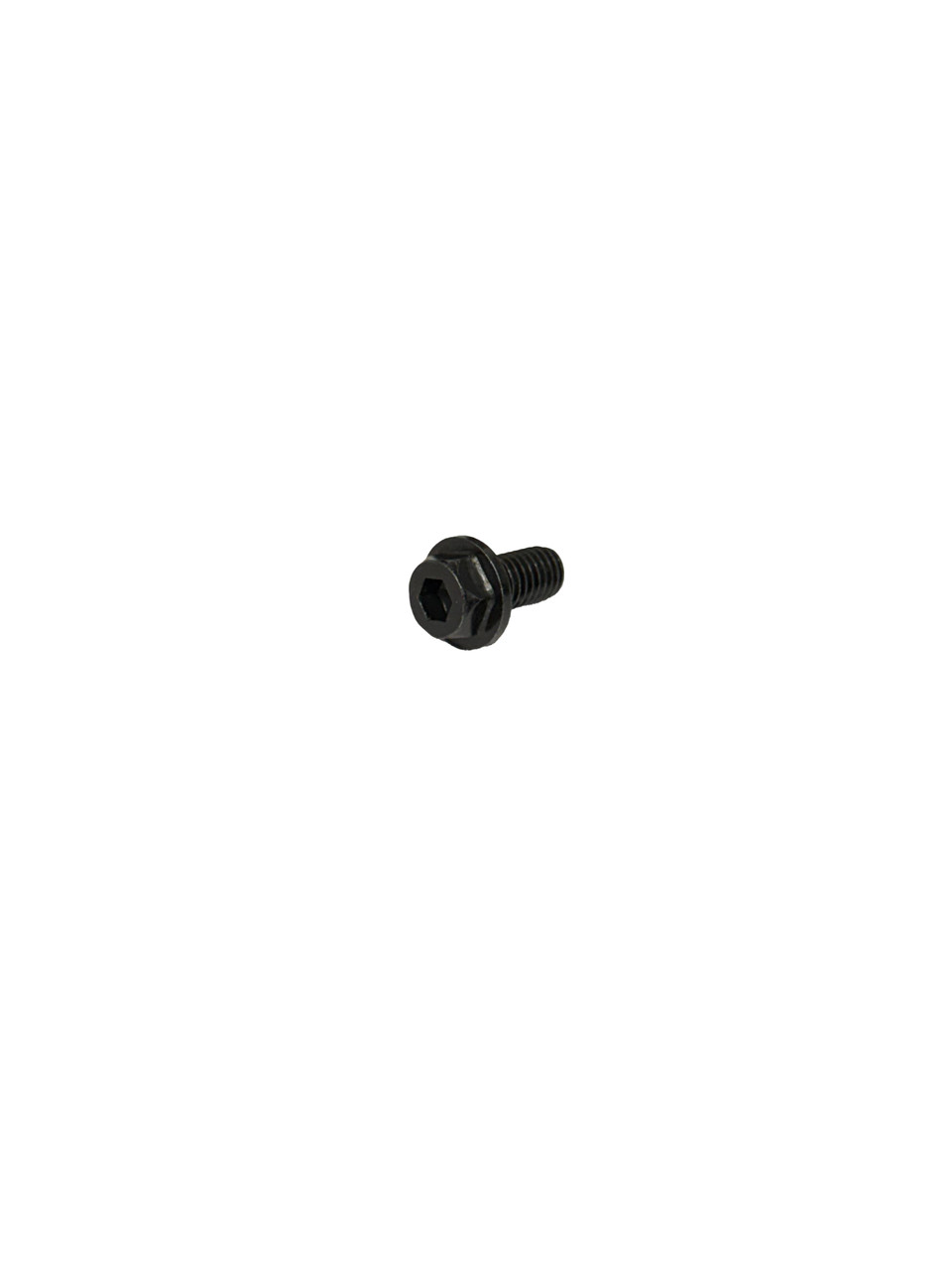

Milwaukee Blade Screw - 3/8-16 x 19mm Left-Hand Thread
Model Number: 06-75-0175
The Milwaukee 06-75-0175 is a genuine OEM Blade Screw, a 3/8 in.-16 x 19 mm left-hand thread hex head cap screw that secures a blade or wheel to the tool. The most important thing to know about this screw is that it is left-hand threaded, which is intentional and critical to how it works. Blade and wheel retention screws are commonly left-hand threaded so that the tool's rotation drives the screw tighter during operation rather than working it loose, which is a safety feature. In practical terms this means the screw is the opposite of a normal fastener: it loosens by turning clockwise and tightens by turning counterclockwise. Forcing it in the standard direction to remove it will only drive it tighter and can strip the head or the threads, so always confirm you are turning it the correct way. The 3/8 in.-16 designation is a 3/8 in. diameter with 16 threads per inch in the National Coarse series, the screw is 19 mm long, and HHCS indicates a hex head cap screw driven by a wrench or socket on its six-sided head.
Because Milwaukee Tool specifies replacement parts by both catalog number and serial number, always verify your tool's serial number against the official Milwaukee service parts diagram before placing your order, since running production changes can alter part compatibility within the same catalog number, and confirm this blade screw at its figure position on your tool's current service parts list. As the fastener that retains a rotating blade or wheel, a blade screw is a safety-critical part: a screw that is stripped, worn in the head recess, or damaged in the threads should be replaced rather than reused, since a blade that is not positively retained is a hazard. Do not substitute a standard right-hand-thread screw of similar size, since a right-hand screw will loosen under the tool's rotation. Refer to your tool's parts diagram for the correct blade flanges, washers, and any companion retention hardware, which are separate parts and vary by tool.
Features
- Genuine Milwaukee OEM service part, not an aftermarket substitute
- Blade screw that secures a blade or wheel to the tool
- Left-hand thread, so it loosens clockwise and tightens counterclockwise
- Left-hand design lets the tool's rotation drive the screw tighter for safety
- 3/8 in.-16 thread, a 3/8 in. diameter with 16 threads per inch, National Coarse
- 19 mm length
- Hex head cap screw (HHCS) driven by a wrench or socket
- Restores positive blade or wheel retention, a safety-critical function
- Manufactured to Milwaukee specification for correct thread and clamp load
- Do not substitute a standard right-hand-thread screw
- Replace a screw with a worn head recess or damaged threads rather than reusing it
- Verify catalog number and serial number before ordering
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 06-75-0175
- Official Description: Blade Screw
- Component Type: Blade or wheel retention screw
- Thread Size: 3/8 in.-16
- Thread Series: NC (National Coarse)
- Thread Direction: Left-hand (LH)
- Length: 19 mm
- Head Style: Hex head cap screw (HHCS)
- Primary Fitment: Verify by catalog and serial number on the parts diagram
- Quantity: Sold individually, (1) typically required per tool
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) Milwaukee 06-75-0175 Blade Screw, 3/8-16 x 19mm Left-Hand Thread
This screw is left-hand threaded and loosens clockwise. The blade flanges, washers, and companion retention hardware are NOT included, vary by tool, and are sold separately - refer to your tool's parts diagram for the correct part numbers and quantities. Always verify by serial number using Milwaukee's online parts lookup before ordering.
