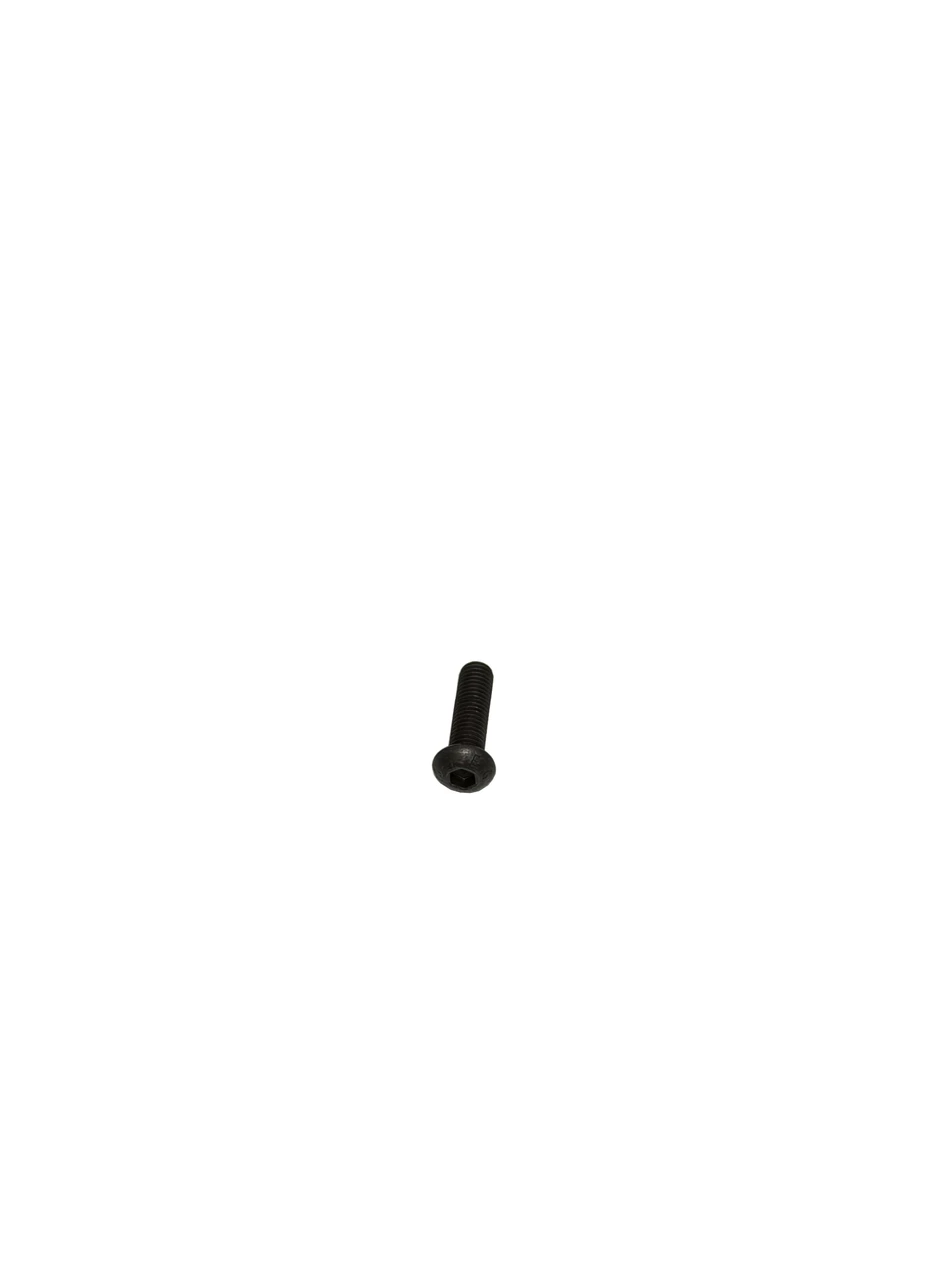

Milwaukee M8 Socket Head Cap Screw
Model Number: 05-74-0014
The Milwaukee 05-74-0014 is a genuine OEM M8 x 1.125, 6mm hex socket head cap screw used as a structural fastener on Milwaukee magnetic drills. It is a hex-drive, or Allen-drive, cap screw that takes a 6mm hex key, and it clamps load-bearing components of the drill together at a defined torque. Milwaukee specifies a seating torque of 30 to 34 in-lbs (35 to 40 kgf-cm) for this screw, and the magnetic drills use two of them at this position. Because it is a fastener that holds a loaded joint, the correct thread, head style, length, and grade matter: using the genuine Milwaukee OEM screw and tightening it to the specified torque keeps the joint secure, where an off-spec or over- or under-torqued screw can strip, loosen, or fail to clamp correctly. Steel fasteners come in many similar sizes, so order this one by its exact part number rather than by appearance.
This screw is identified as the M8 x 1.125, 6mm Hex Socket Head Cap Screw, Figure 76, on the Milwaukee service parts lists for the M18 FUEL 1-1/2 in. magnetic drills, the 2787-20 (bulletins 54-46-0410 and 54-46-0411) and the 2788-20 (bulletins 54-46-0420 and 54-46-0421), where it is called out as a quantity of two. The same screw is referenced across other Milwaukee magnetic drills, including the 4272 230V compact magnetic drill, so it serves more than one mag drill; confirm the figure position and quantity for your specific tool. Order both screws when replacing them so the joint is fastened as designed, and tighten to the Milwaukee torque spec. Because Milwaukee specifies service parts by serial number as well as catalog number, verify your catalog and serial number against the official Milwaukee service parts diagram before ordering, since running production changes can alter part compatibility within the same catalog number.
Features
- Genuine Milwaukee OEM socket head cap screw
- M8 x 1.125 thread, 6mm hex (Allen) drive
- Structural fastener for Milwaukee magnetic drills
- Figure 76 on the M18 FUEL mag drill diagrams; the drill uses two
- Fits the 2787-20 and 2788-20 M18 FUEL 1-1/2 in. magnetic drills
- Also referenced on other Milwaukee mag drills, including the 4272 230V compact magnetic drill
- Milwaukee seating torque: 30 to 34 in-lbs (35 to 40 kgf-cm)
- Correct thread, head, length, and grade for the clamping load
- Clamps a load-bearing joint; tighten to the specified torque
- Sold individually; order two to replace the pair
- Order by exact part number; similar-size fasteners are not interchangeable
- Genuine Milwaukee replacement, not a generic hardware-store screw
Specifications
- Manufacturer: Milwaukee Tool
- Part Number: 05-74-0014
- Official Description: M8 x 1.125, 6mm Hex Socket Hd. Cap Screw
- Component Type: Socket head cap screw (hex-drive fastener)
- Drive: 6mm hex (Allen); Seating Torque: 30 to 34 in-lbs (35 to 40 kgf-cm)
- Primary Fitment: Milwaukee 2787-20 and 2788-20 M18 FUEL 1-1/2 in. Magnetic Drills (Figure 76, qty 2)
- Also Referenced On: Other Milwaukee magnetic drills, including the 4272 230V Compact Magnetic Drill; verify applications using Milwaukee's online parts lookup
- Parts Diagram Position: Figure 76 (bulletins 54-46-0410, 54-46-0411, 54-46-0420, 54-46-0421)
- Quantity: Sold individually; the magnetic drills use two
- Part Type: Genuine Milwaukee OEM Replacement Part
Includes
- (1) M8 x 1.125, 6mm hex socket head cap screw
The tool and the mating components are NOT included and are sold separately. The magnetic drills use two of these screws, so order two to replace the pair. Always verify by serial number using Milwaukee's online parts lookup before ordering, and order by the exact part number, since similar-size fasteners are not interchangeable.
